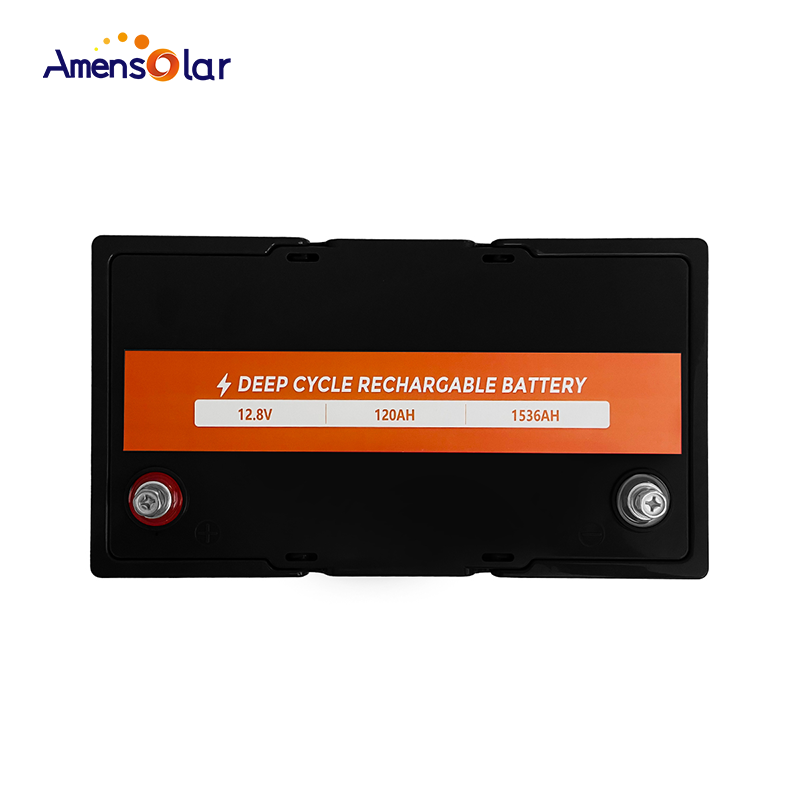

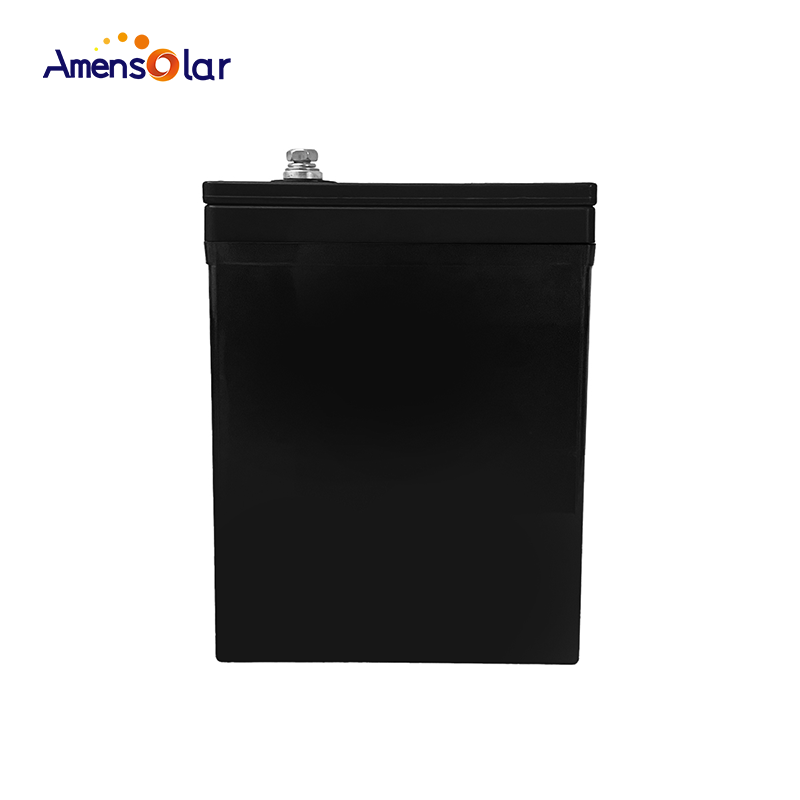

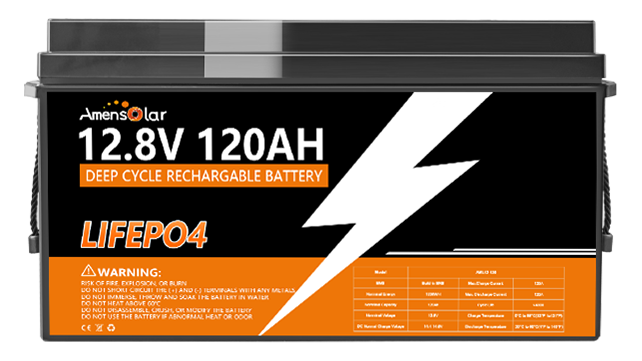

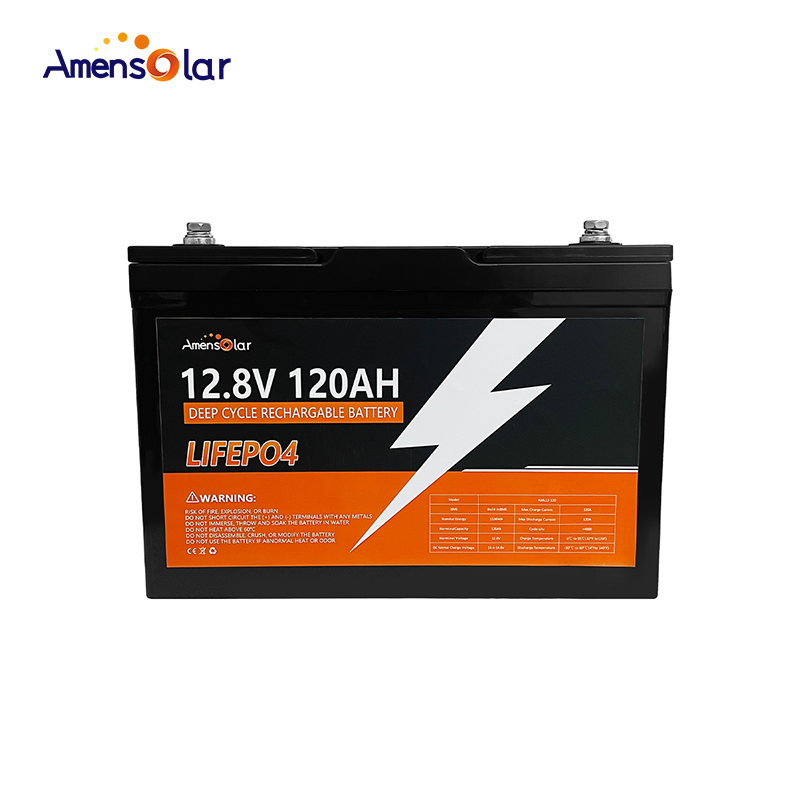

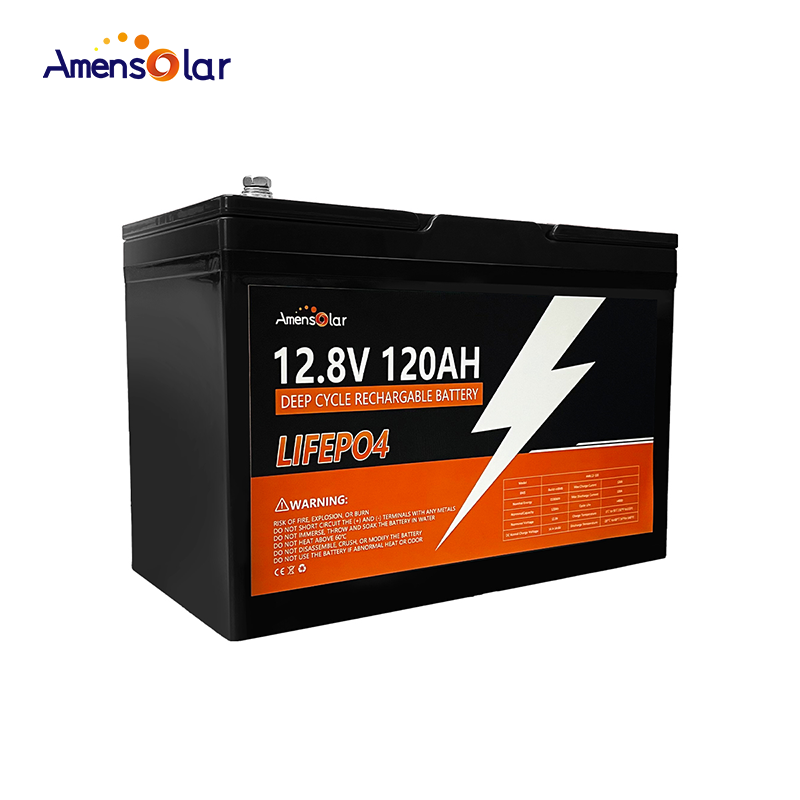

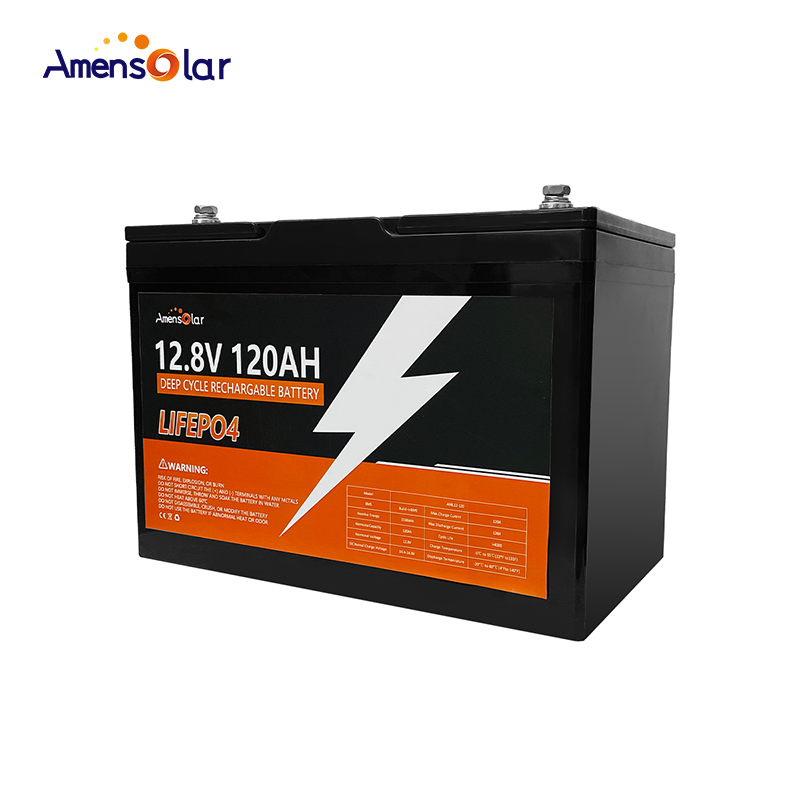

AML12-120 12.8V Series LifePo4 Battery

1. Cycle life：>4000 Cycles @ 90%DOD.

2. Parallel ：Support 4 pcs series and 4 pcs parallel.

3. Smart design：IP65 Waterproof and moisture-proof.

4. OEM Service ：Logo branding, Custom case color .

Data Sheet

AML12-100 12.8V Series LifePo4...

AML12-150 12.8V Series LifePo4...

AML12-200 12.8V Series LifePo4...

Model	AML12-120
Electrical Parameter
Battery Type	LiFePO4 (LITHIUM IRON PHOSPHATE)
BMS	Built-in BMS
Norminal Energy	1536WH
Norminal Capacity	120Ah
Norminal Voltage	12.8V
Cycle Life	>4000
Charge Parameter
DC Normal Charge Voltage	14.4-14.6V
Recommended Charge Current	<0.2C
Allowed Max.Charge Current	120A
Charge Cut-off Voltage	14.6±1Vdc
Charge Mode	0.2C to 14.6V, then 14.6V, charge current to 0.02C(CC/CV)
Discharge Parameter
Continuous Discharge Current	0.5C
Allowed Max. Discharge Current	120A
Discharge Cut-off Voltage	10V
Max. Pulse Current Discharge	240A10S
Environmental & Mechanical Parameter
Charge Temperature	0°C to 55°C(32°F to131°F)
Discharge Temperature	-20°C to 60°C(4°F to 140°F)
Enclosure Protection Level	IP65
Case Material	ABS
Dimensions (mm)	307169208
Weight (kg)	13kg
Parallel & Series	Support 4 pcs series and 4 pcs parallel
