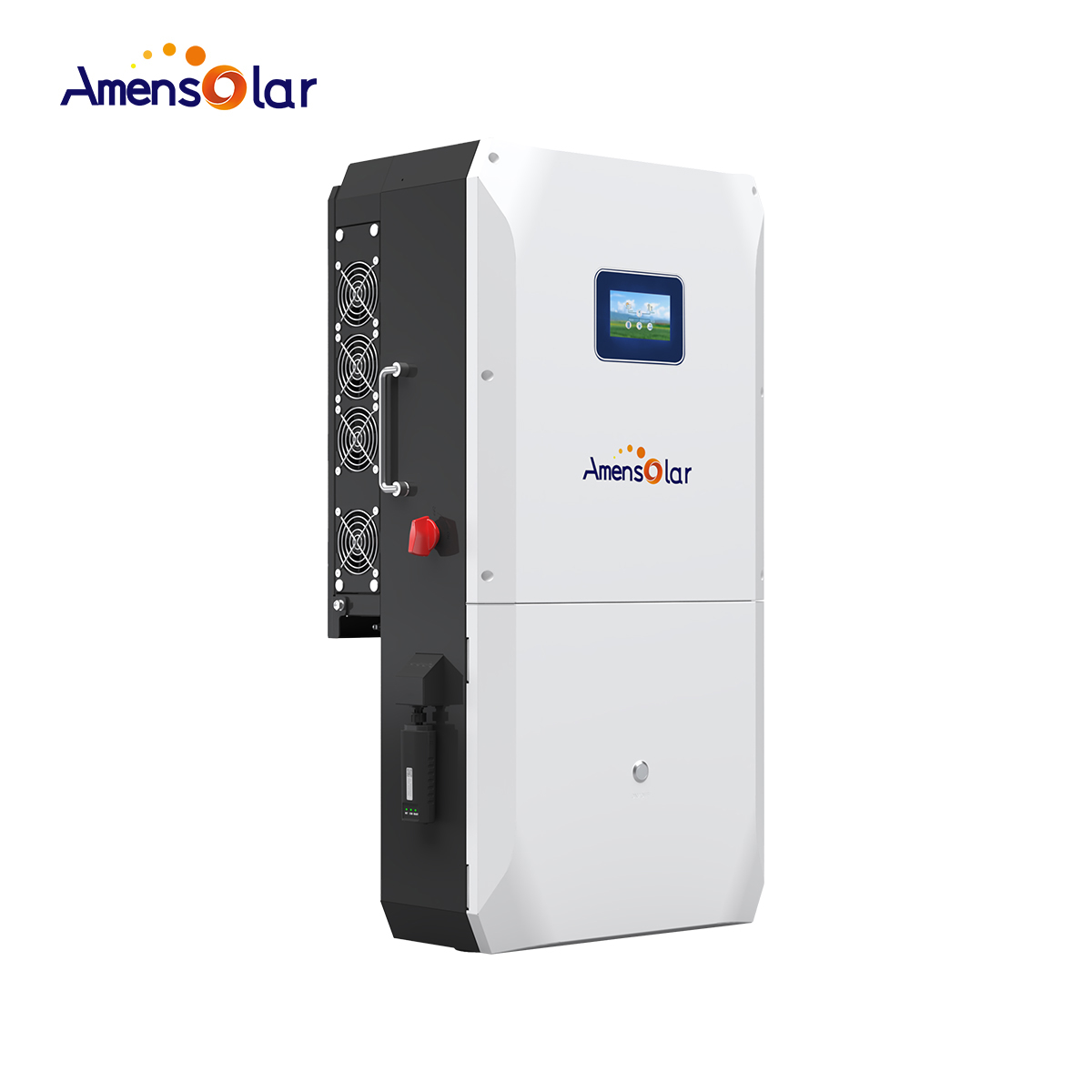

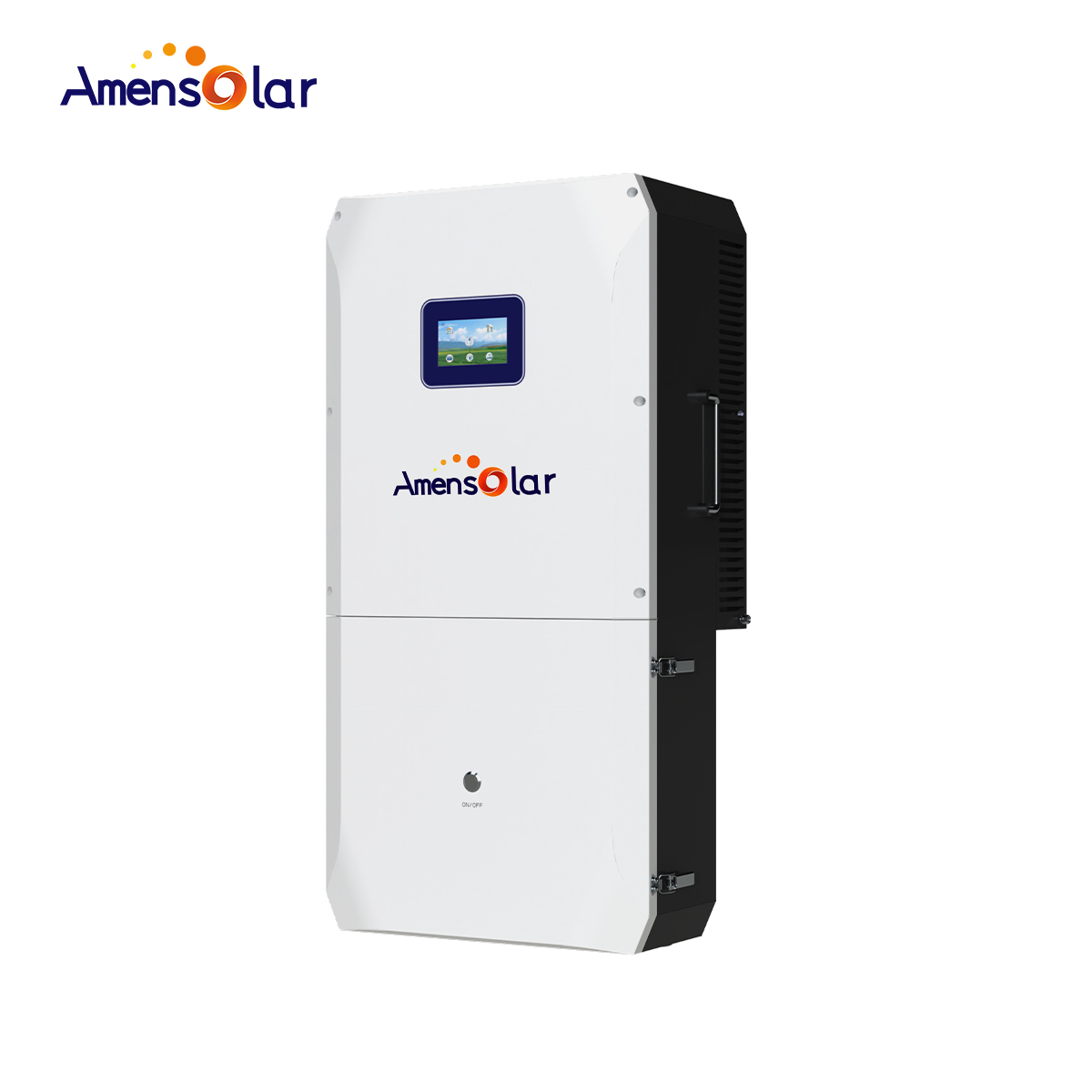

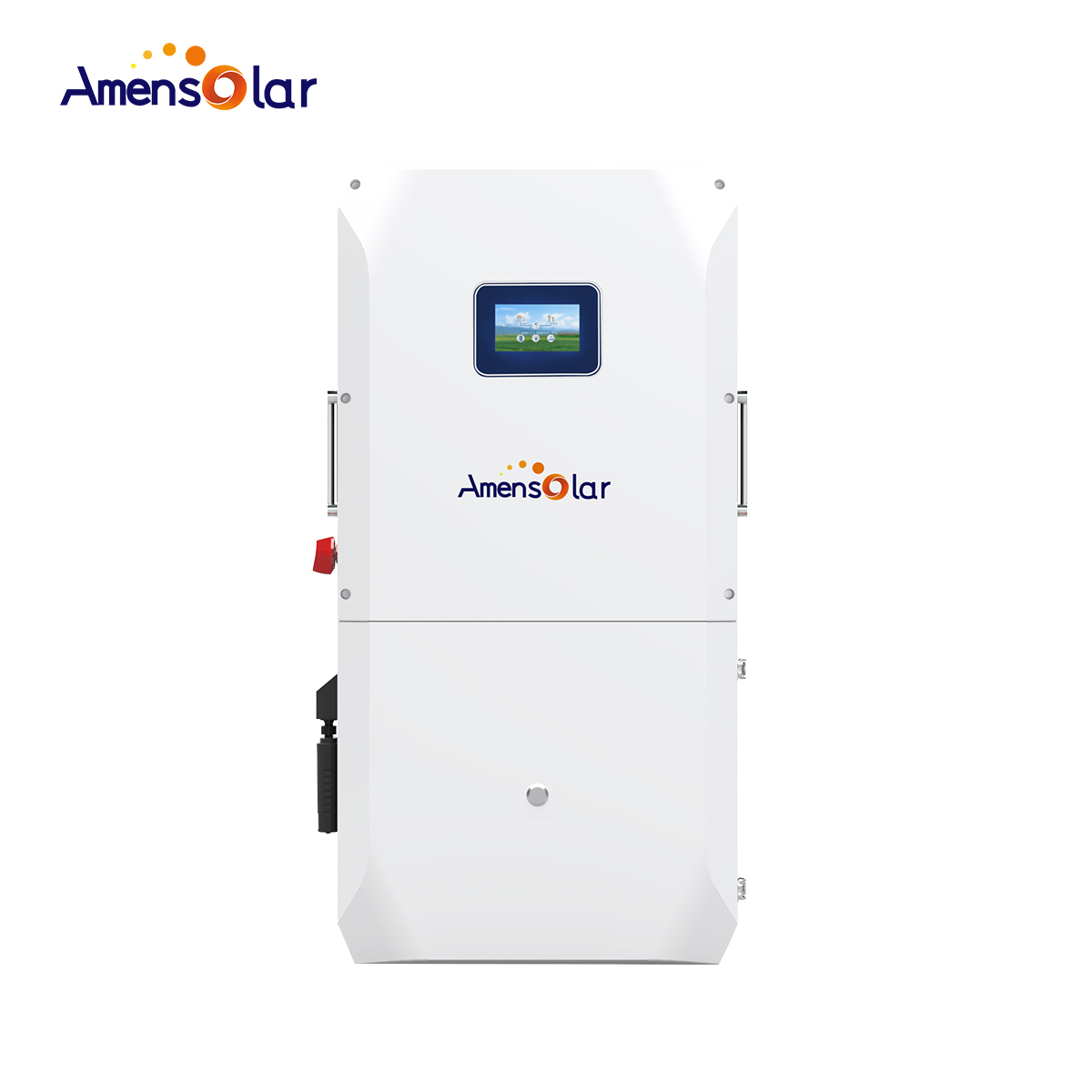

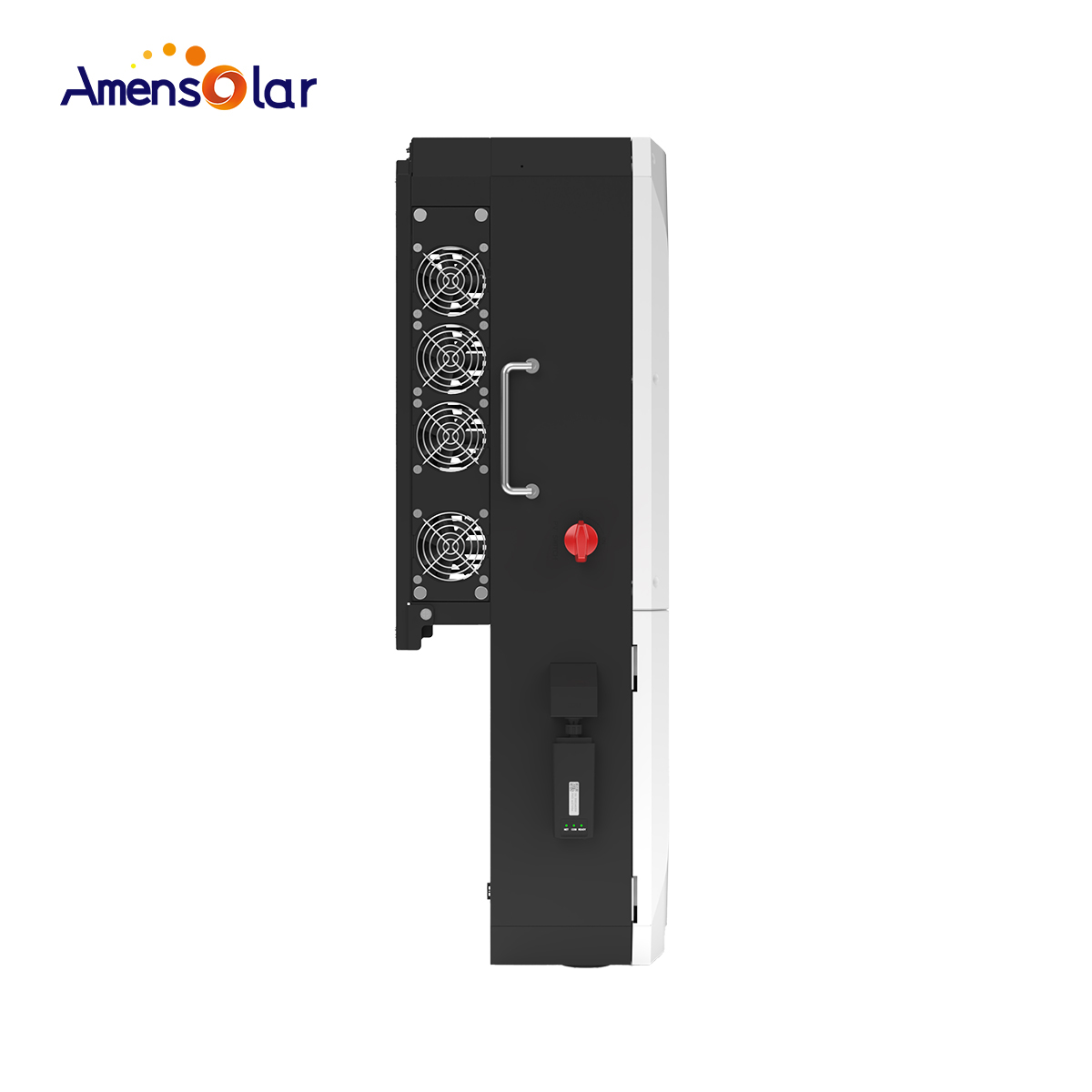

N3H-X12US 12KW Split Phase Hybrid Inverter

1. Certificate: UL1741 UL1699B CSA IEEE Hawaiia.

2. Inverter power: 12KW.

3. Communication: Can,Rs485.

4. Support split phase 110/220V, 208V and 230V voltage.

5. Support OEM for customers with their own brand.

6. Support customer to do UL multiple listing.

7. Support parallel and generator function.

8. Support peak shifting function for customer to use extral electricity to earn money .

9. Max grid pass though current(A): 200.

Download:

Data Sheet

User Manual

Other Model:

N3H-X16US 16KW | Split Phase |...

N3H-X5US 5KW | Split Phase | ...

N3H-X8US 8KW | Split Phase | ...

Product Introduction

Model	N3H-X12US
PV input
Max.DC input power (kW)	18
No. of MPPT trackers	4
MPPT voltage range (V)	120~430
MAX. DC input voltage (V)	500
MAX. input current per MPPT (A)	16/16/16/16
MAX. short current per MPPT (A)	22A
Battery input
Nominal voltage (V)	48
MAX.charging/discharging current (A)	250A/260A
Battery voltage range (V)	40-58
Battery type	Lithium /Lead-acid
Charging controller	3-Stage with equalization
AC output(on-grid)
Nominal output power output to grid (kVA)	12
MAX. apparent power output to grid (kVA)	13.2
Nominal AC voltage(L-N/L1-L2) (V)	110 -120V/220-240V split phase, 208V(2/3 phase), 230V(1phase)
Nominal AC frequency(Hz)	50/60
Nominal AC current (A)	50
Max. AC current (A)	55
Max. grid passthrough current (A)	200
Output THDi	<3%
AC output(back-up)
Nominal. apparent power (kVA)	12
Max. apparent power（no PV) (kVA)	12
Max. apparent power（with PV) (kVA)	13.2
Nominal output voltage(V)	120/240
Nominal output frequency (Hz)	60
Output power factor	0.8leading~0.8lagging
Output THDu	<2%

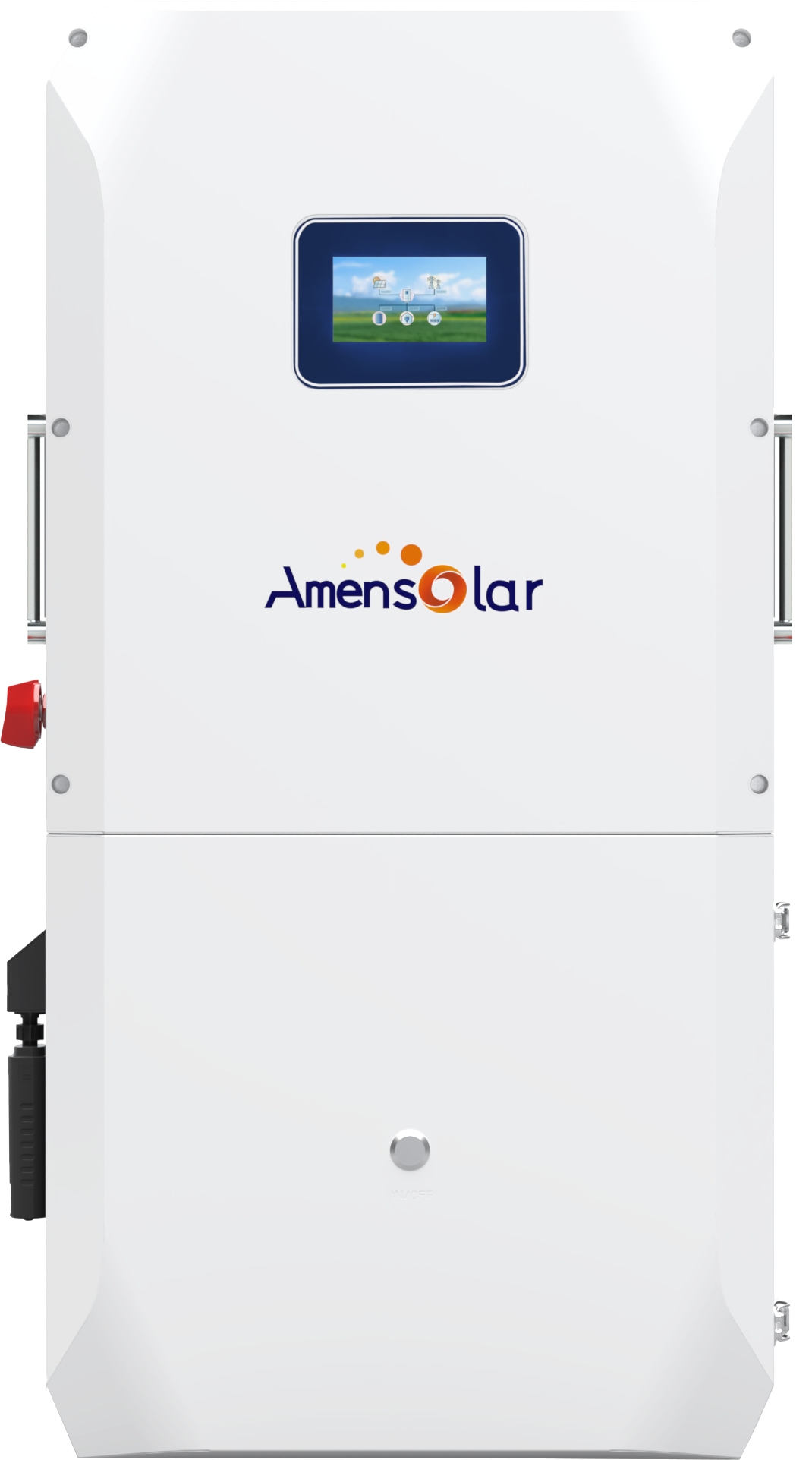

Protection
Ground detection	Yes
Arc fault protection	Yes
Island protection	Yes
Insulation resistor detection	Yes
Residual current monitoring unit	Yes
Output over current protection	Yes
Back-up output short protection	Yes
Output over voltage protection	Yes
Output under voltage protection	Yes
General data
Mppt efficiency	99.9%
Europe efficiency(PV)	96.2%
Max. PV to grid efficiency(PV)	96.5%
Max. battery to load efficiency	94.6%
Max. PV to battery charging efficiency	95.8%
Max. grid to battery charging efficiency	94.5%
Operating temperature range (℃)	-25~+60
Relative humidity	0-95%
Operating altitude	0~4,000m(Derating above 2,000m altitude)
Ingress protection	IP65/NEMA 3R
Weight (kg)	53
Weight (with breaker) (kg)	56
Dimensions WHD (mm)	495 x 900 x 260
Cooling	Air Cooling
Noise emission (dB)	38
Display	LCD
Communication with BMS/Meter/EMS	RS485, CAN
Supported communication interface	RS485, 4G (optional), Wi-Fi
Self-consumption	<25W
Safety	UL1741, UL1741SA&SB all options, UL1699B, CSA -C22.2 NO.107.1-01,RSD(NEC690.5,11,12)
EMC	FCC part 15 classB
Grid connection standards	IEEE 1547, IEEE 2030.5, HECO Rule 14H, CA Rule 21 Phase I,II,III,CEC,CSIP,SRD2.0,SGIP,OGPe,NOM,California Prob65

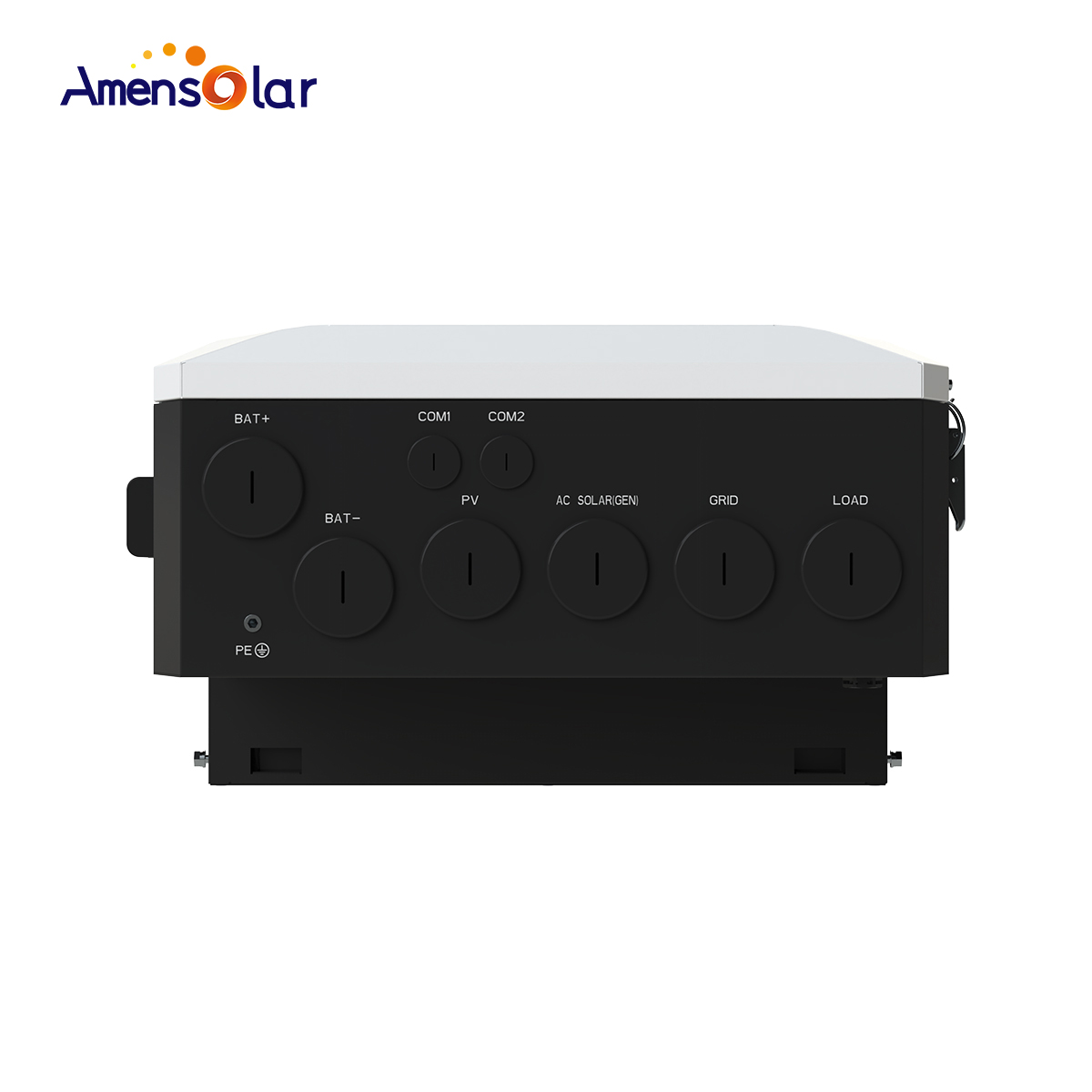

Other data
Backup conduit	2″
Grid conduit	2″
AC solar conduit	2″
PV input conduit	2″
Bat input conduit	2″
PV switch	Integrated

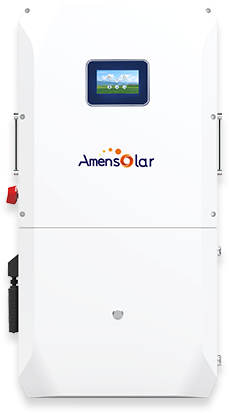

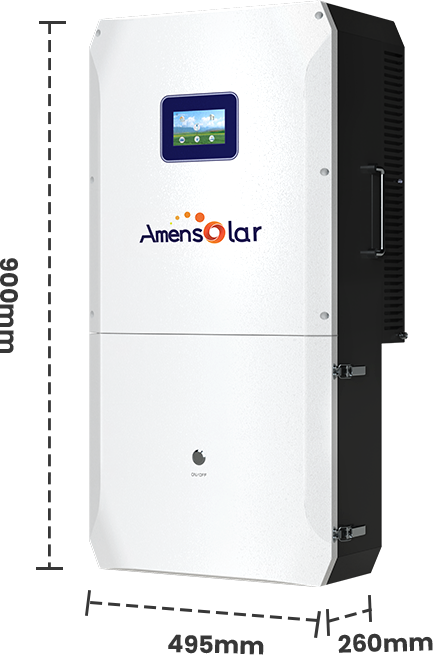

High Quality Solar Inverter

4MPPTS

Max input current of 16A for each MPPT

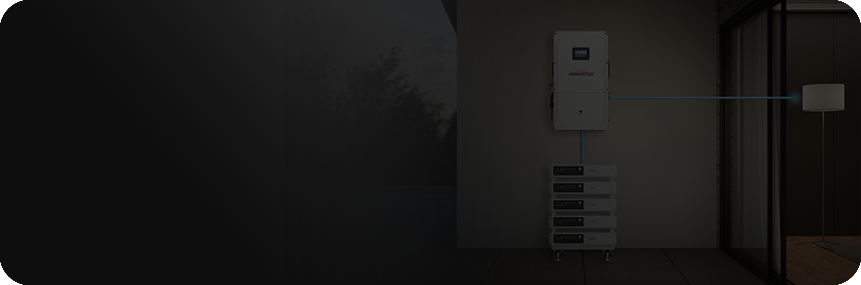

Multiple Working Modes

Self use/peak shift/battery priority

Coupling function

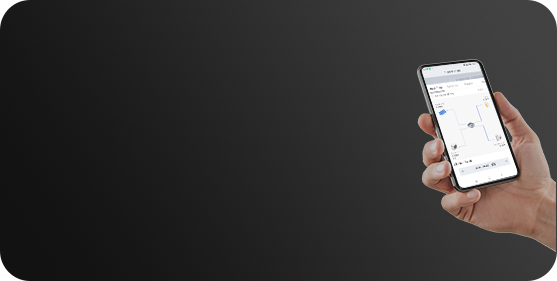

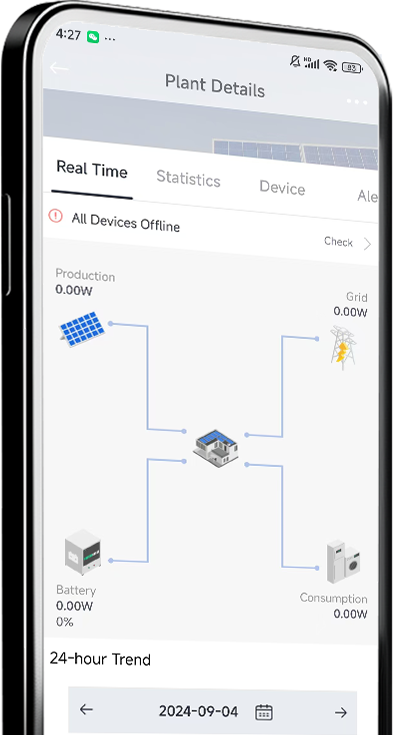

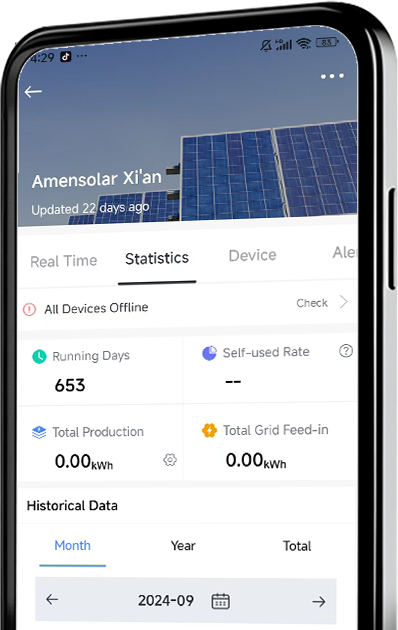

Solarman APP

Enables remote intelligent monitoring

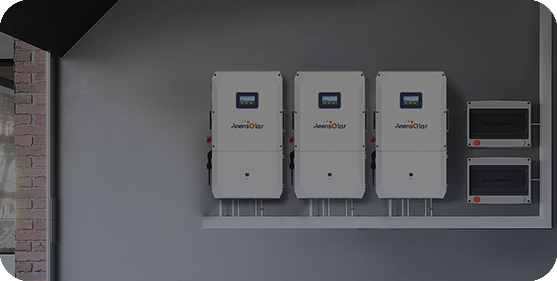

Can be connected in parallel to increase System power

PV DC to AC

Converts DC power generated by solar panels to AC power for home or commercial use

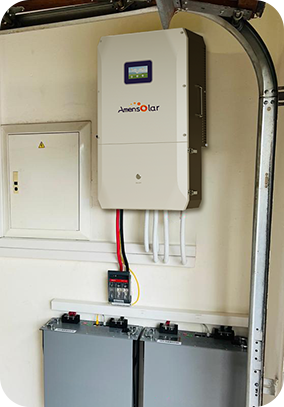

Battery storage

Inverters can be integrated with energy storage systems (batteries) to store excess power for use at night or on cloudy days

Selling Electricity

The inverter supports connection to the smart grid, allowing bi-directional power flow, allowing customers to not only use their own power but also sell excess power to the grid.
