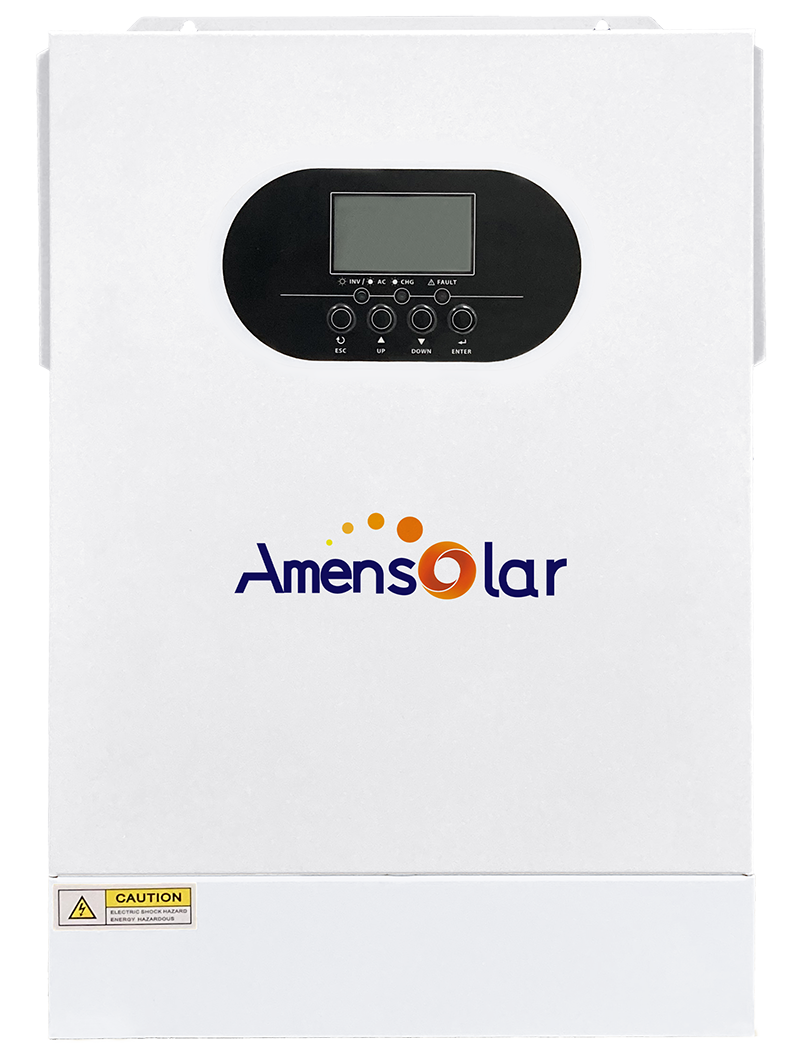

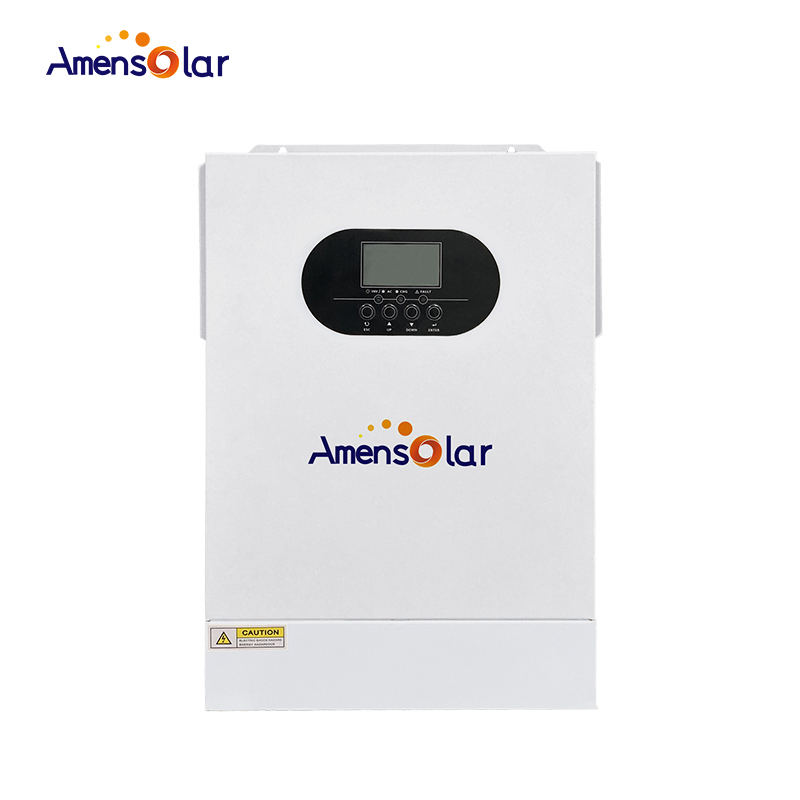

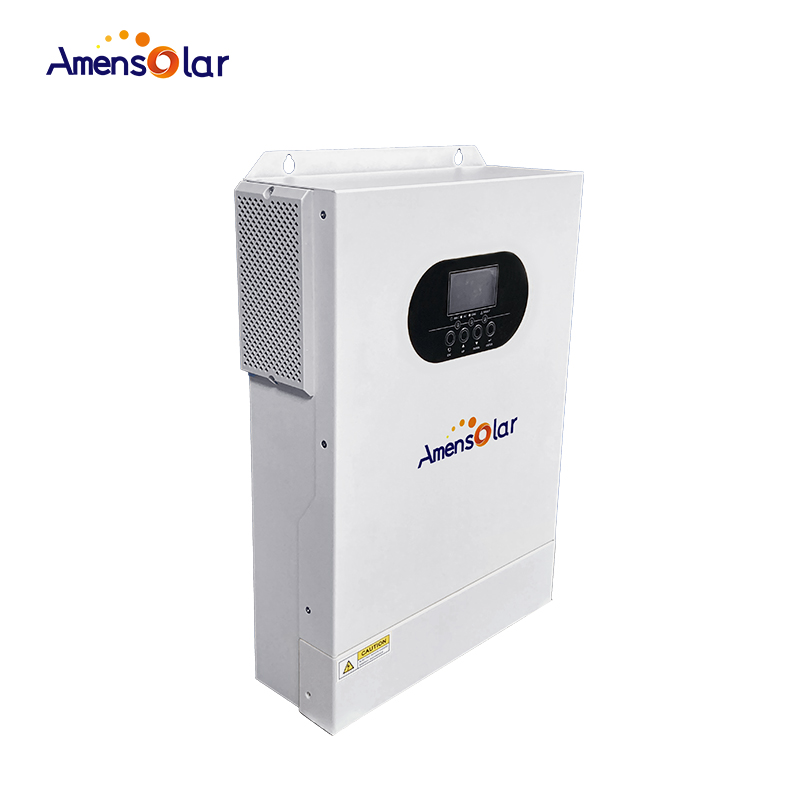

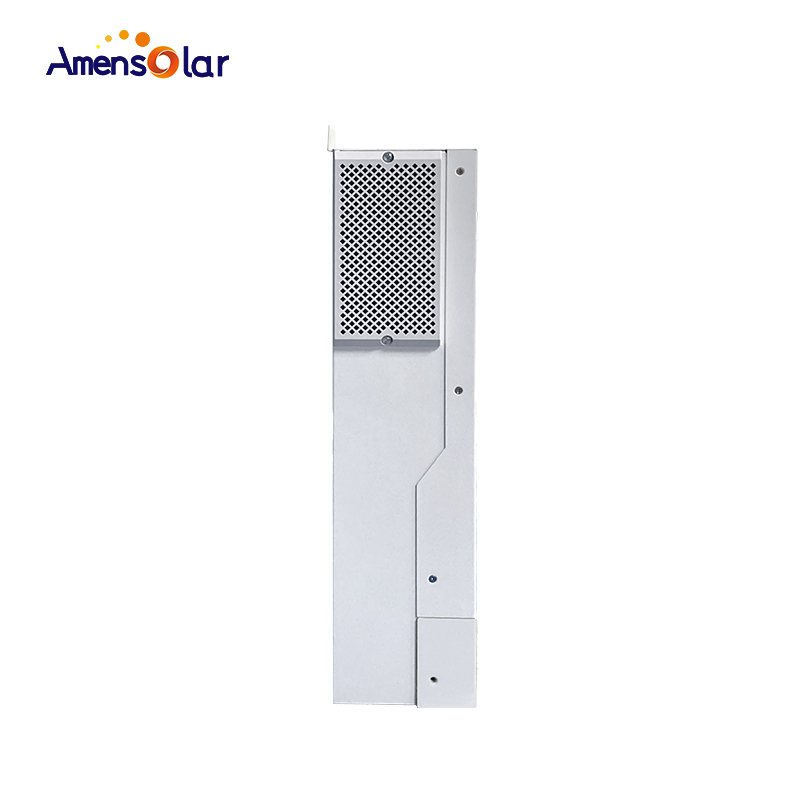

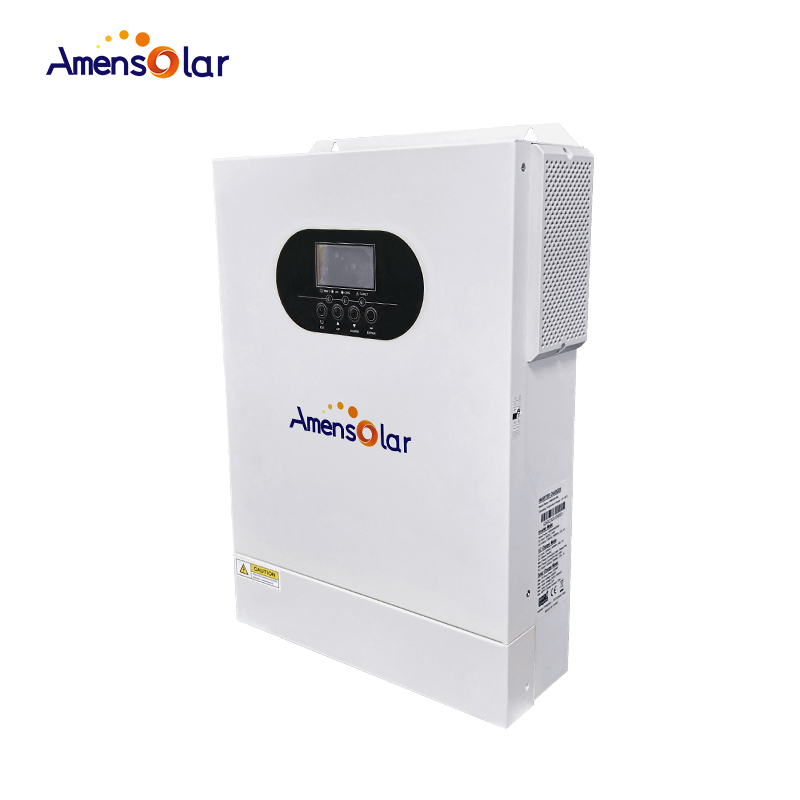

N1F-A3.5/24E 3.5KW Single Phase Off-grid Inverter

1. Inverter power: 3.5KW.

2. Communication: Can,Rs485.

3. Nominal Voltage: 230VAC.

4. Pure sine wave.

5. Power factor 1.0.

6. Capable of working without the battery.

7. Enables remote intelligent monitoring by SmartESS APP.

8. Lithium battery activation function, which can be triggered by mains or PV.

9 .EQ function to optimize battery performance and extend the lifecycle.

Data Sheet

User Manual

N1F-A3US 3KW | Split Phase | ...

N1F-A6.2P 6.2KW | Single Phase...

N1F-A6.2E 6.2KW | Single Phase...

Model	N1F-A3.5/24E
Capacity	3.5KVA/3.5KW
Parallel Capability	No
input
Nominal Voltage	230VAC
Acceptable Voltage Range	170-280VAC(For personal Computer);90-280vac(For Home Appliances)
Frequency	50/60 Hz(Auto sensing)
OUTPUT
Nominal Voltage	220/230VAC±5%
Surge Power	7000VA
Frequency	50/60Hz
Waveform	Pure Sine wave
Transfer Time	10ms(For personal Computer);20ms(For Home Appliances)
Peak Efficiency(PV to INV)	96%
Peak Efficiency(Battery to INV)	93%
Overload Protection	5s@>= 150%load;10s@110%~ 150%load
Crest Factor	3:1
Admissible Power Factor	0.6~ 1(inductive or capacitive)
BATTERY
Battery Voltage	24VDC
Floating Charge Voltage	27VDC
OverCharge Protection	33VDC
Charging Method	CC/CV
Lithium Battery Activation	YES
Lithim battery Communication	YES(RS485)
Solar Charger &AC Charger
Solar Charger Type	MPPT
Max.PV Array Power	4000W
Max.PV Array Open Circuit Voltage	500VDC
PV Array MPPT Voltage Range	60VDC~450VDC
Max.Solar Input Current	15A
Max.Solar Charge Current	100A
Max.AC Charge Current	80A
Max.Charge Current	100A
PHYSICAL
Dimensions , DxWxH	358295 100mm
Package Dimensions , DxWxH	465380 175mm
Net Weight	7KG
Communication Interface	RS232+RS485
ENVIRONMENT
Operating Temperature Range	- 10°C ~ 50°C
Storage Temperature	- 15°C ~ 50°C
Humidity	5%to 95%Relative Humidity(Non-condensing)
