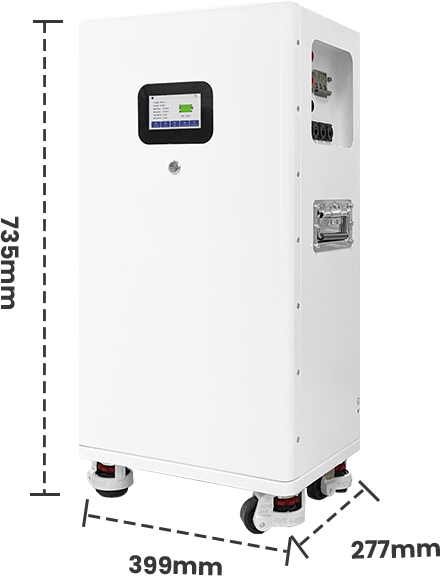

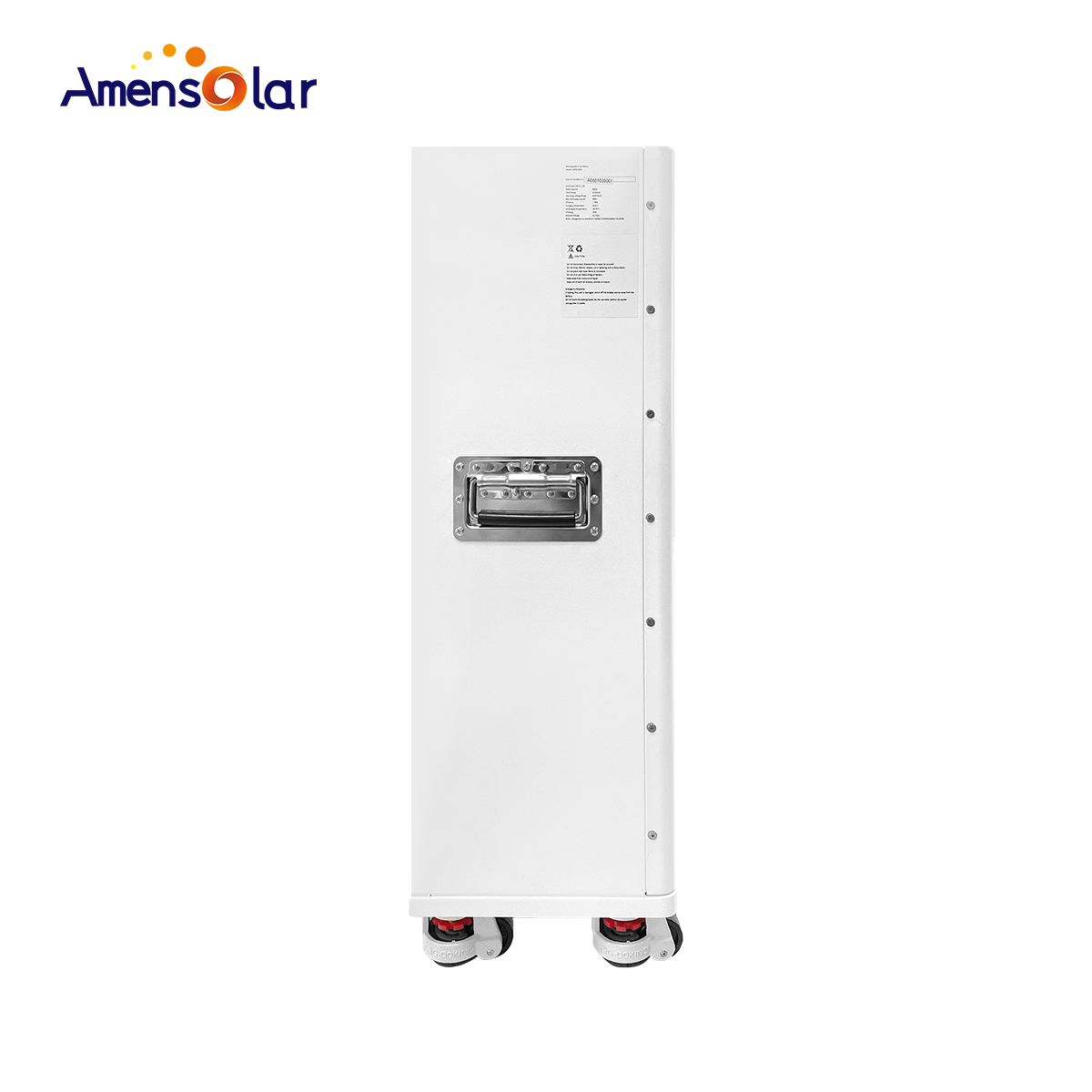

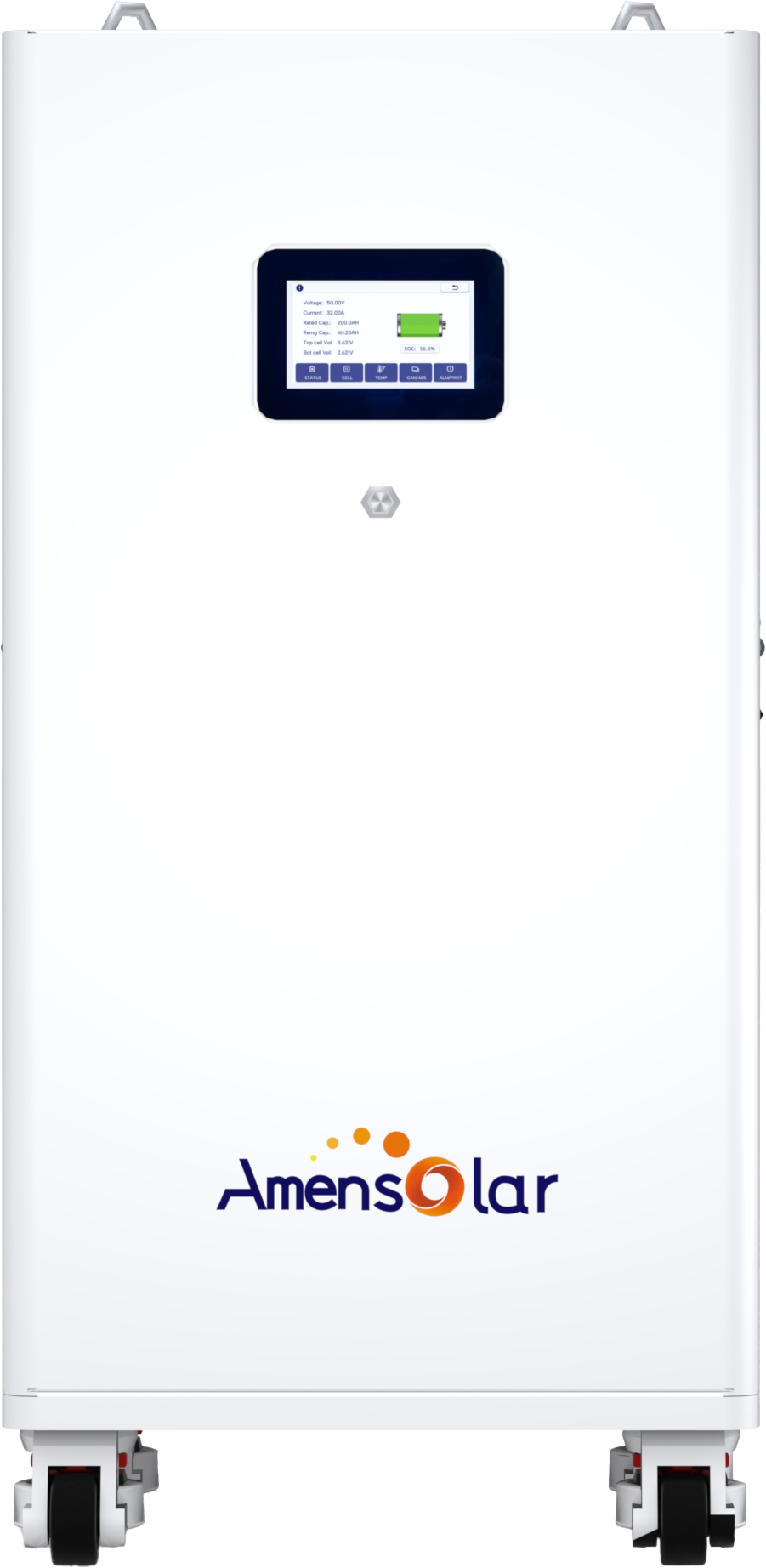

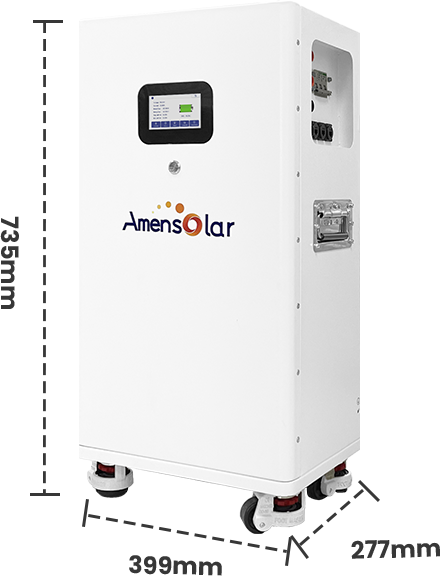

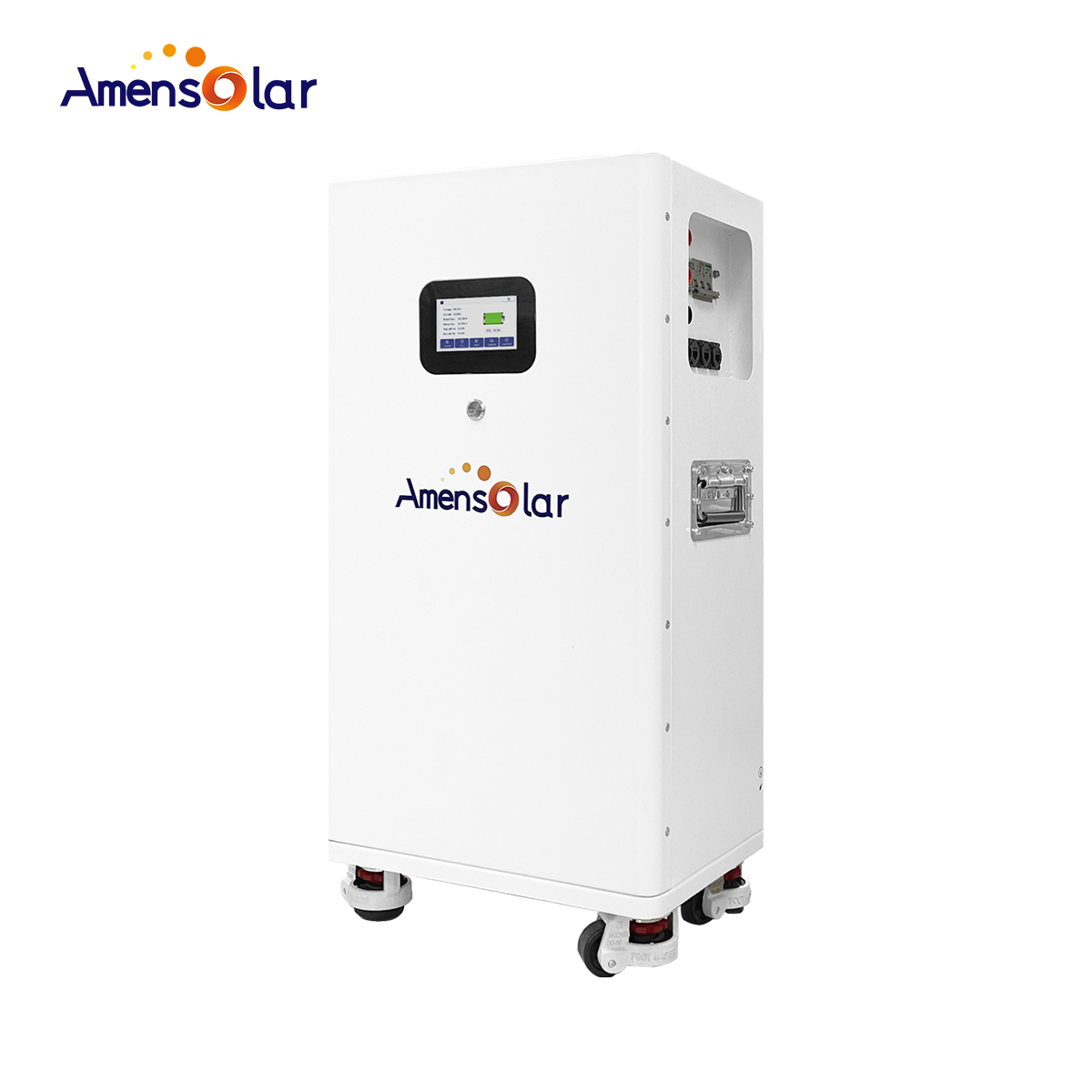

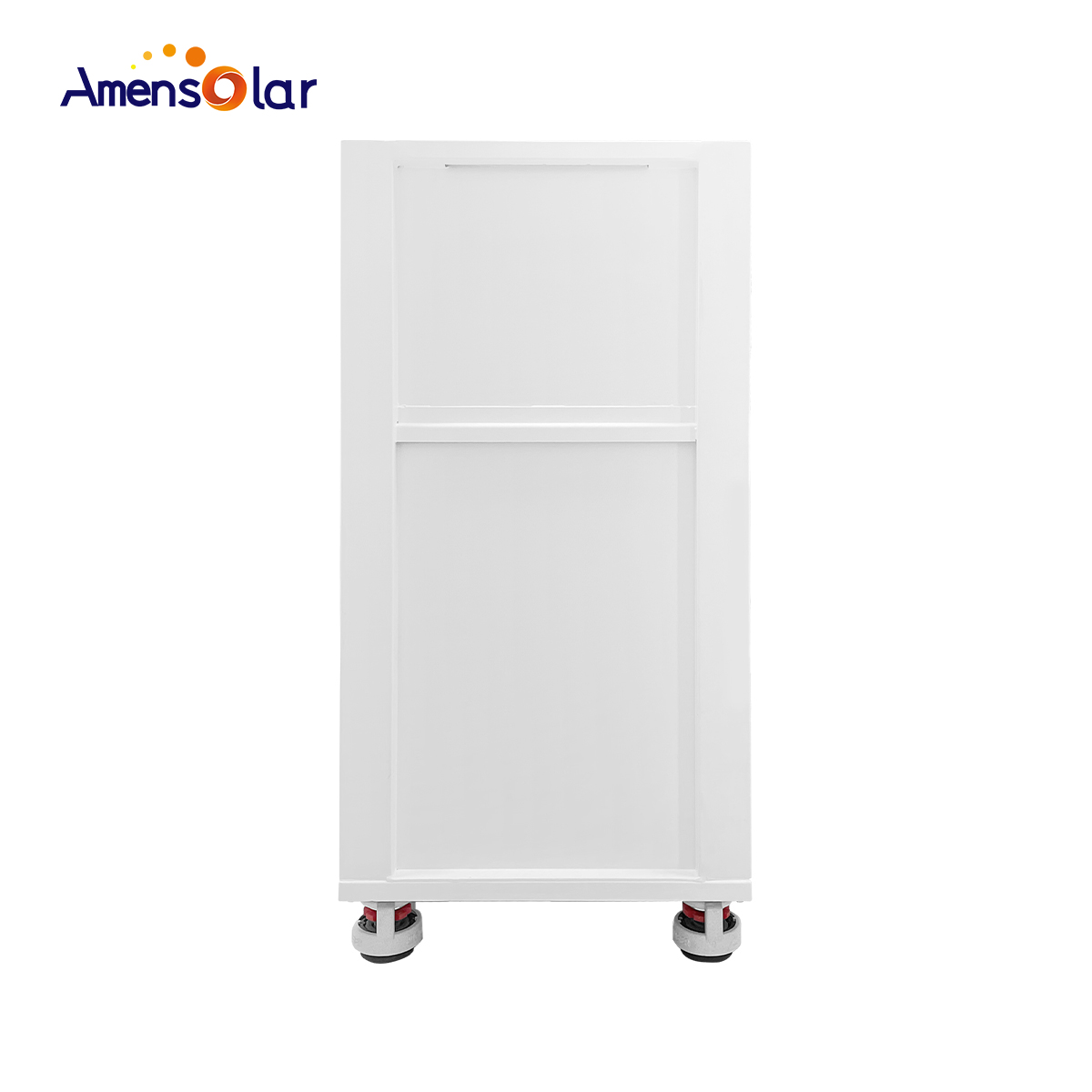

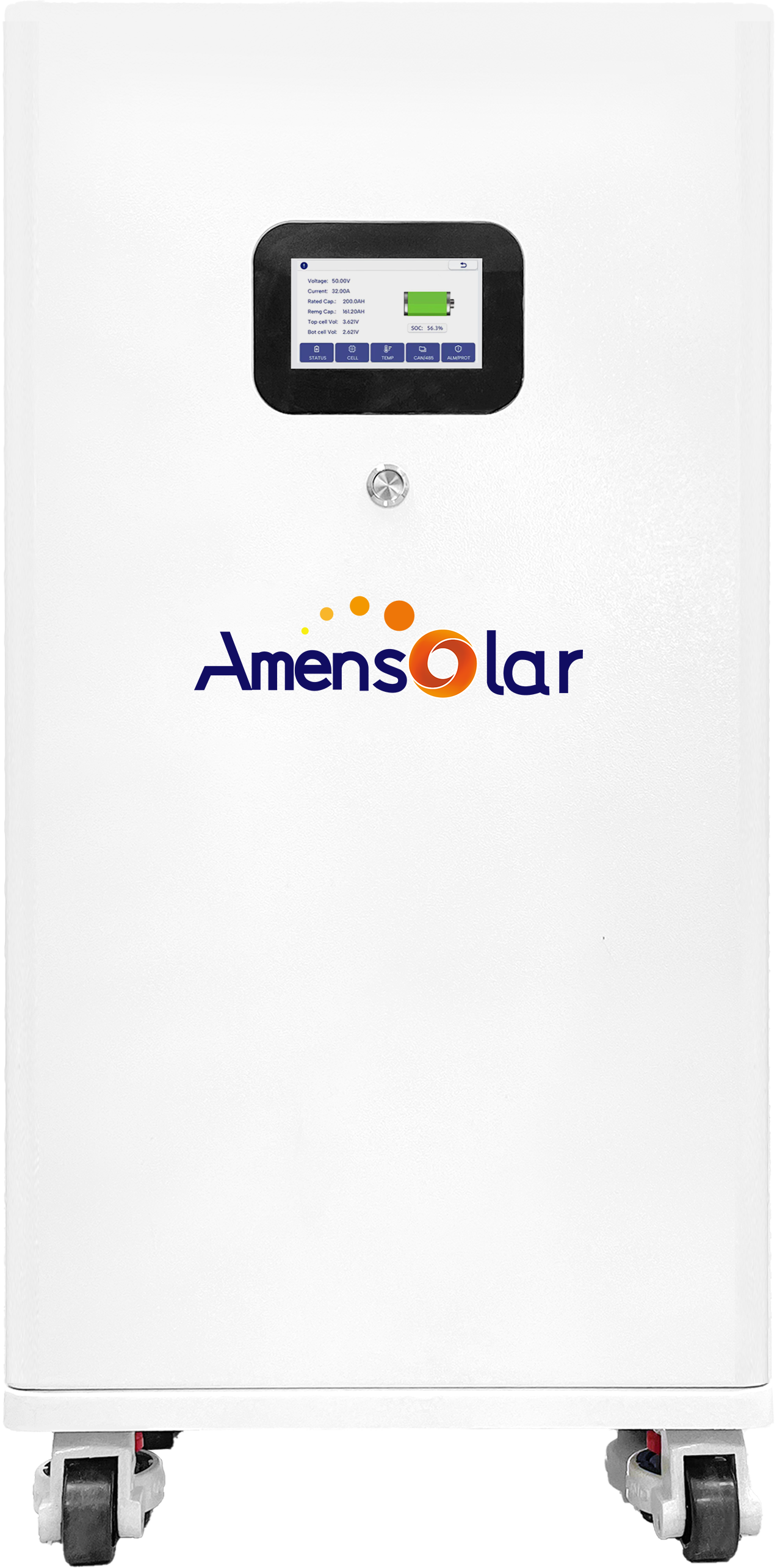

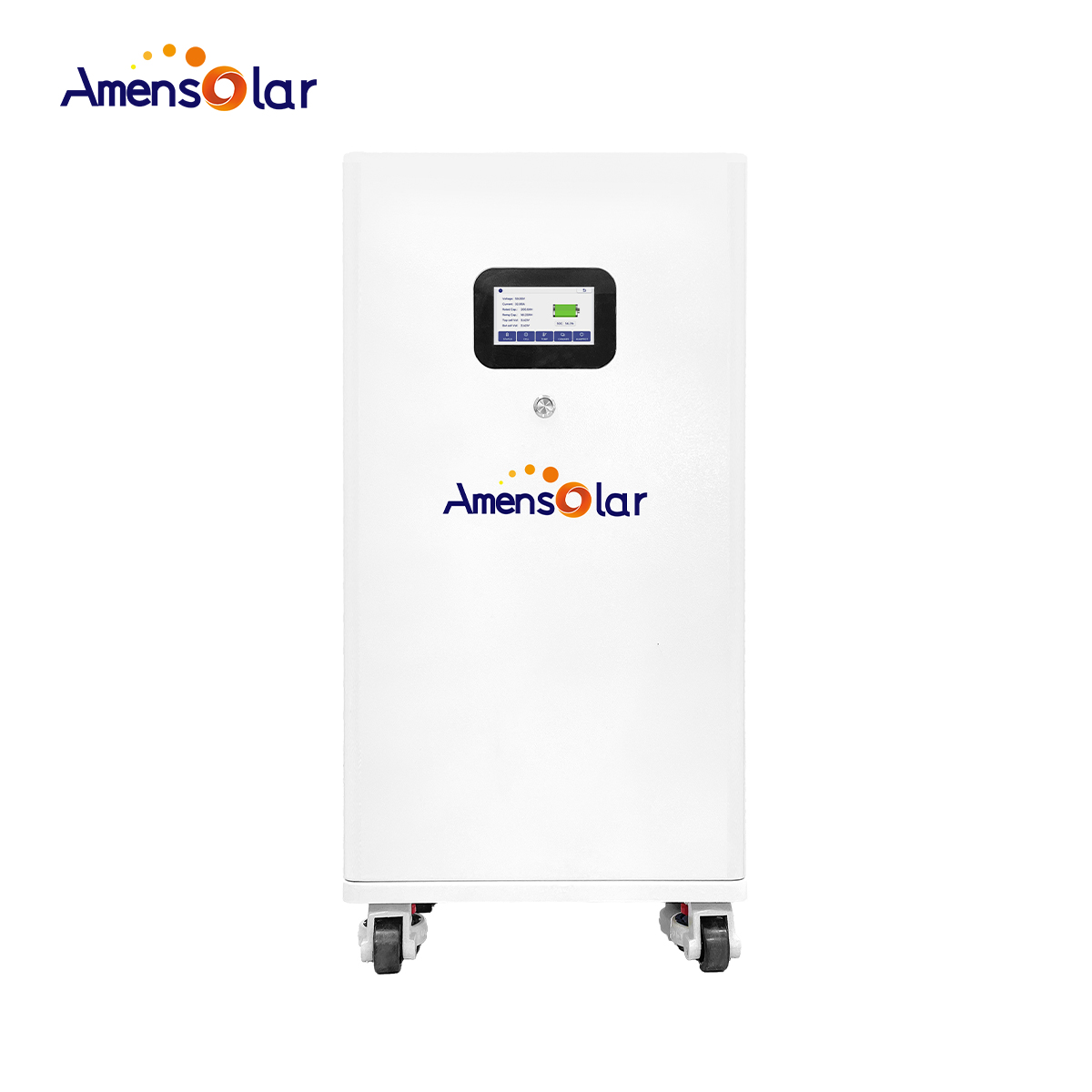

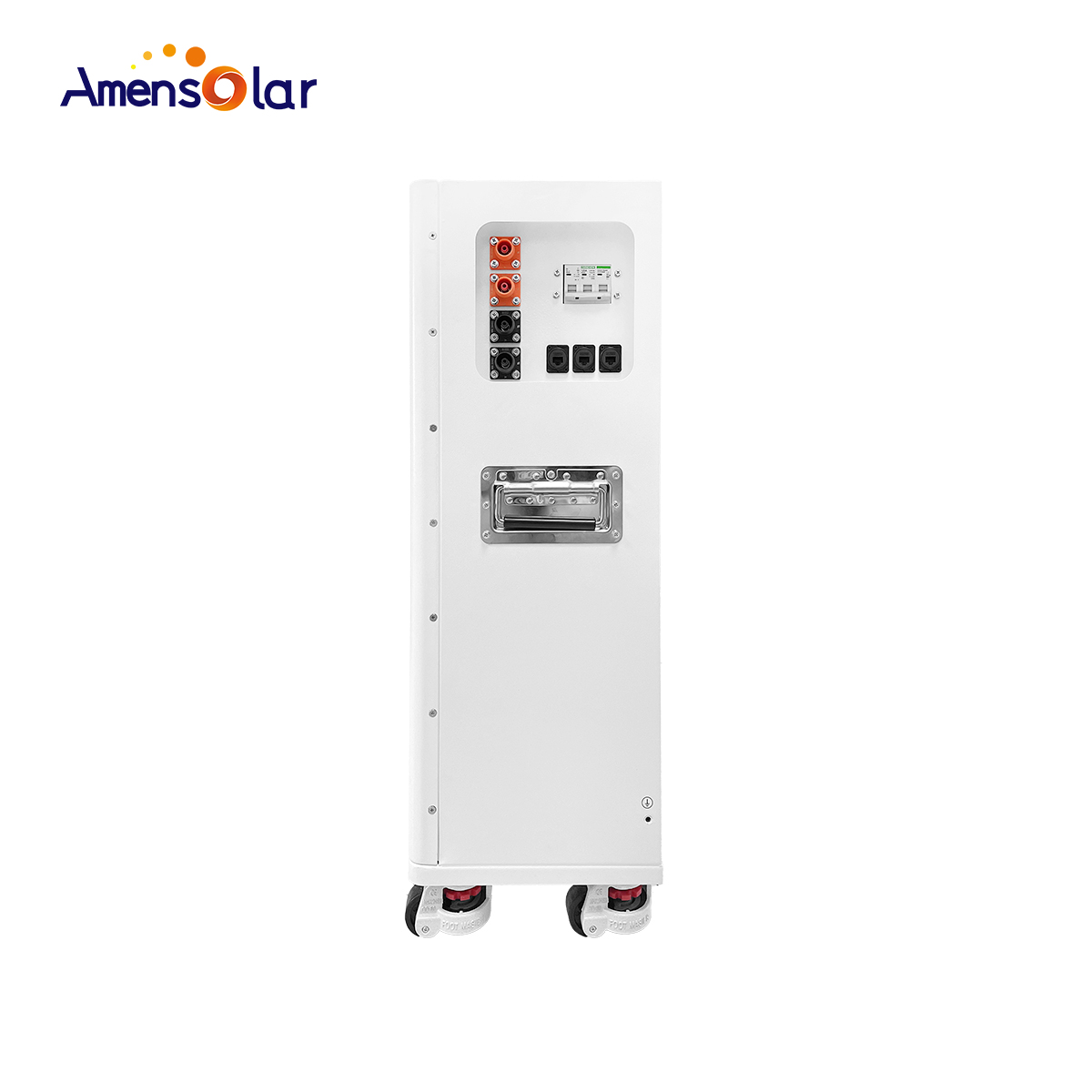

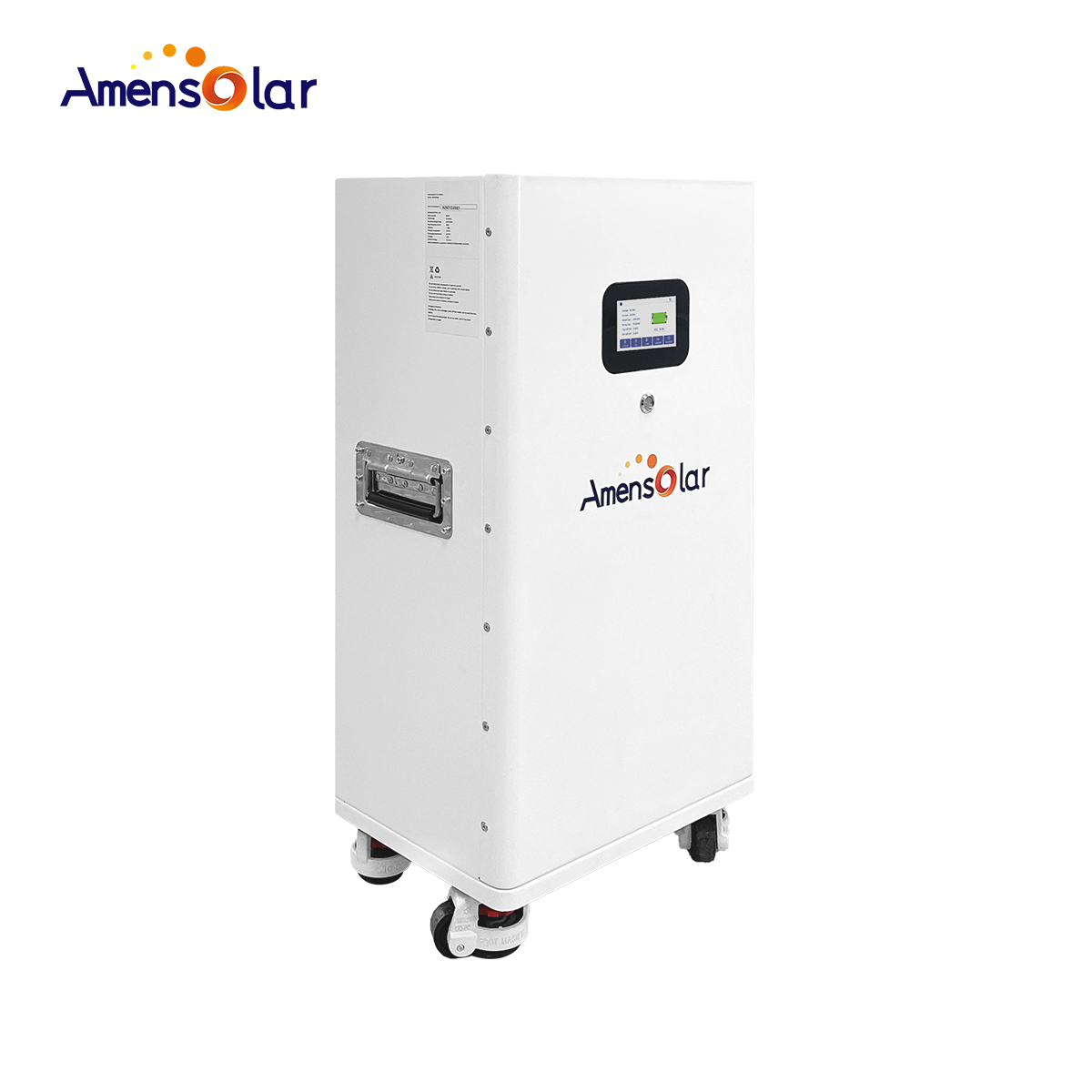

AMW10240 51.2V 10.24KWH Wall/Floor Lithium Battery

1. Cycle life：>6000 Cycles @ 90%DOD.

2. Intelligent BMS：Wider compatibility.

3. Compact Design and Safety Protection.

4. Consistency of battery cells：20 Years life span Settable charging voltage.

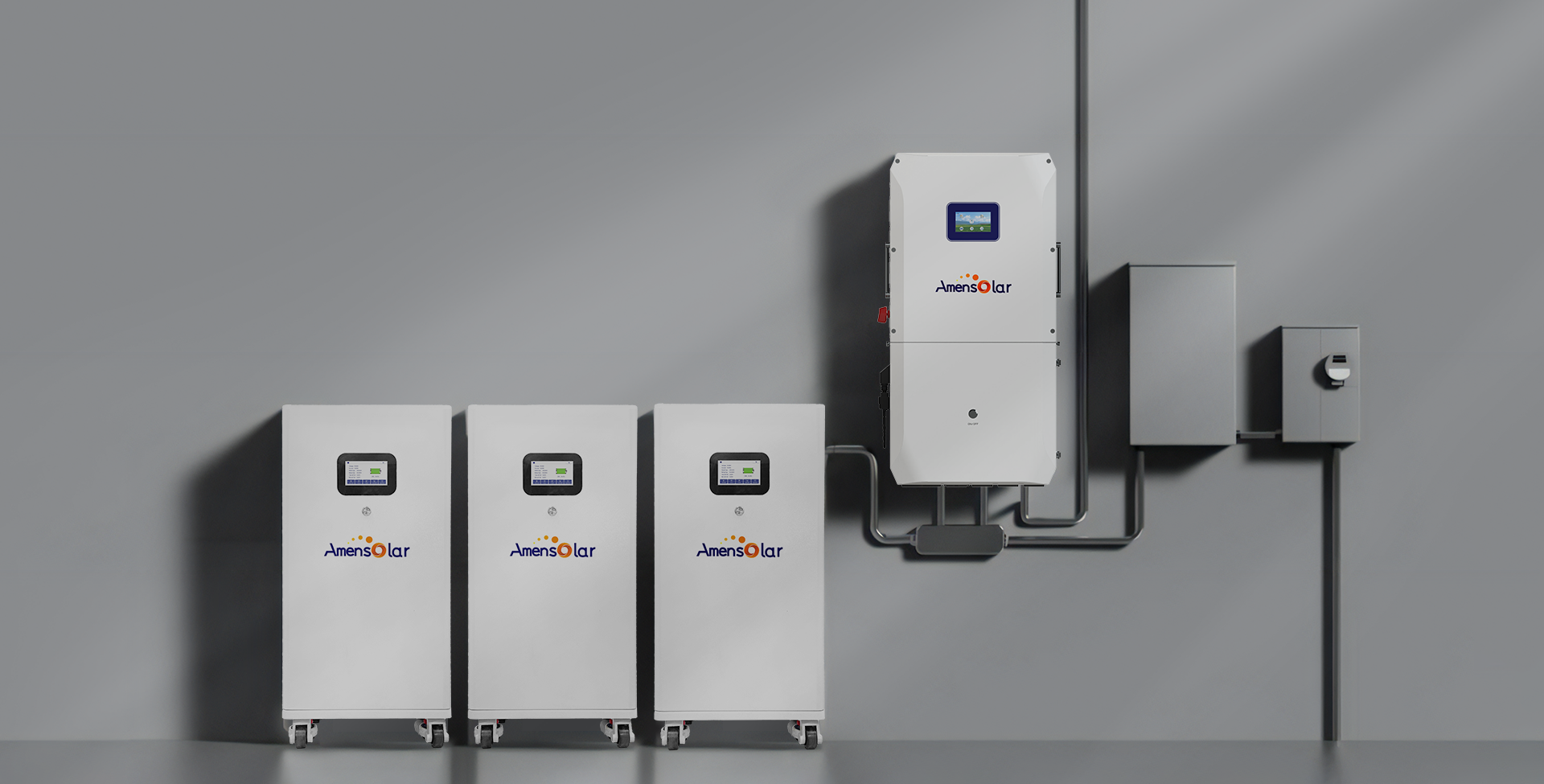

5. Scalable: paralleled 16 sets：Battery:10.24kWh - 163.84kWh.

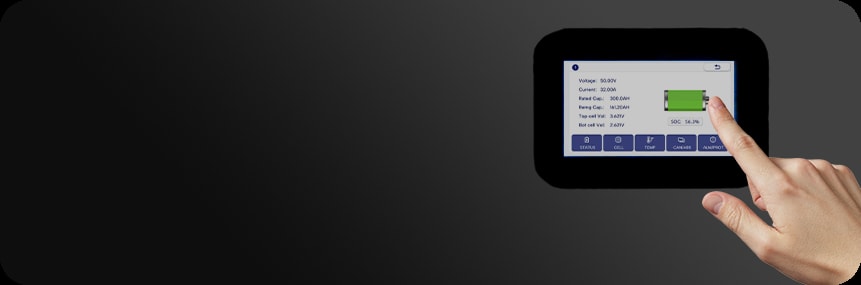

6. Touch screen：Set communication protocol and DIP View battery information.

7. Safety Standard：IEC61000/CE/UN38.3/MSDS.

Data Sheet

User Manual

S52200 51.2V | 10.24KWH | S...

Model	AMW10240
Module Type	LFP 10.24kWh / LV
Nominal Voltage	51.2V
Operatng Voltage Range	44.8~58.4V
Nominal Capacity	200Ah
Nominal Energy (at 25°C)	10.24kWh
DOD	90%
Charge/Discharge Current	100A
Max Charge/Discharge Current	200A
Charge Temperature	0~55℃
Discharge Temperature	-10~50℃
Relative Humidity	5% – 95%
Communication Interface	CAN / RS485
Enclosure Protection Rating	IP 52
Cooling Type	Natural cooling
Cycle Life	≥6000
Warranty	10 years
Life Span	20+ Years (25°C)
Max. Pieces of Parallel	16
Dimension (LWH)	277400735mm
Weight	85±1kg
Certificates	IEC61000/CE/UN38.3/MSDS
