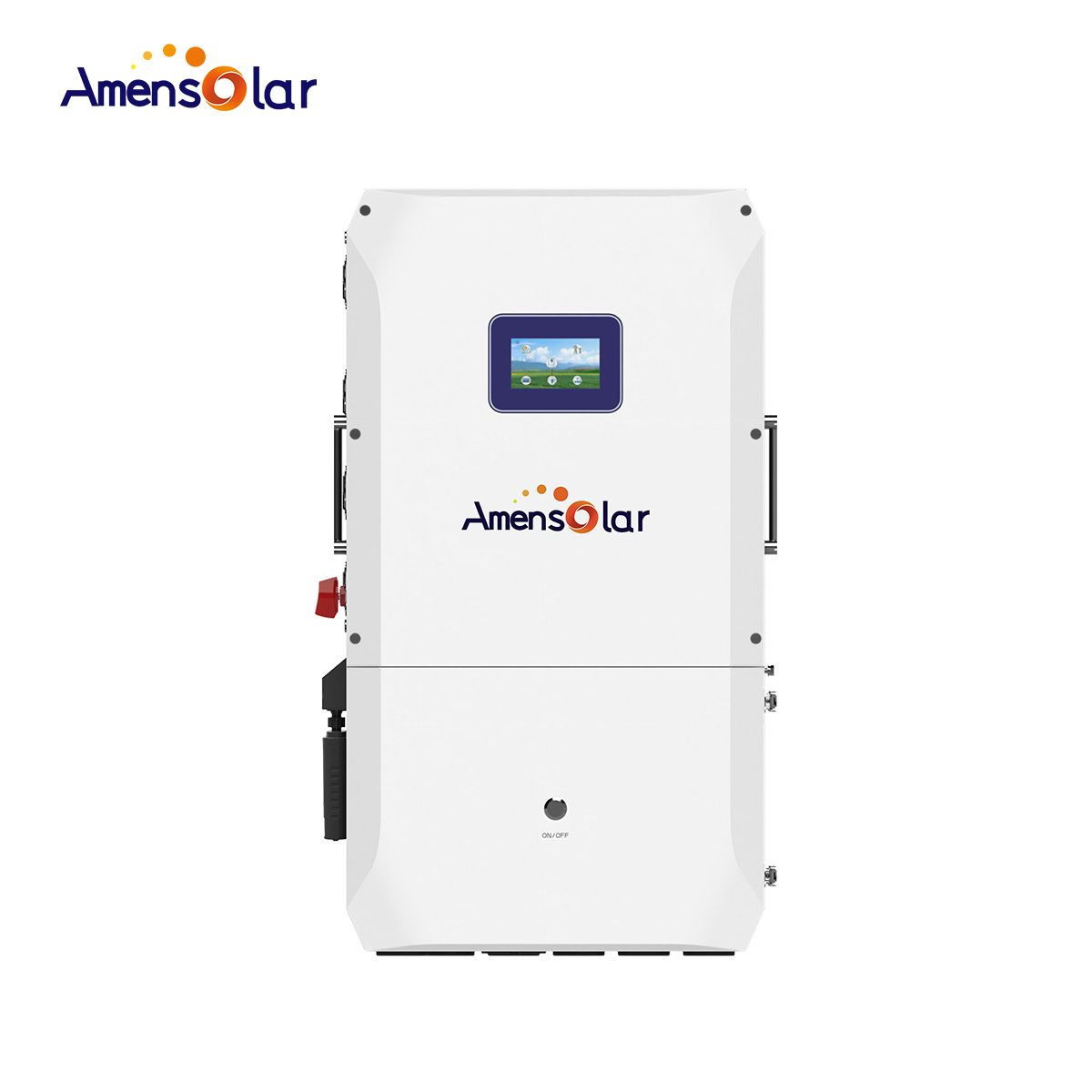

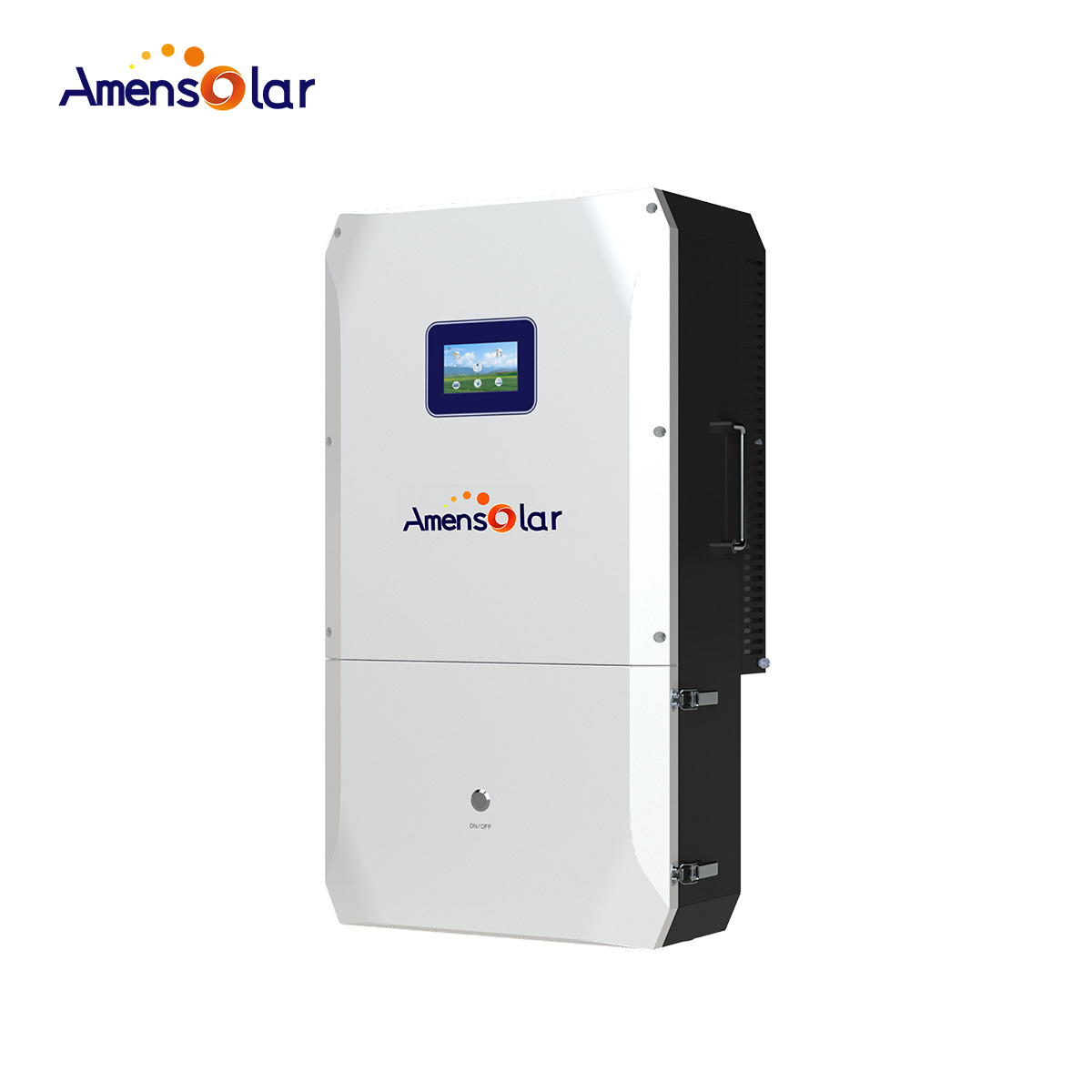

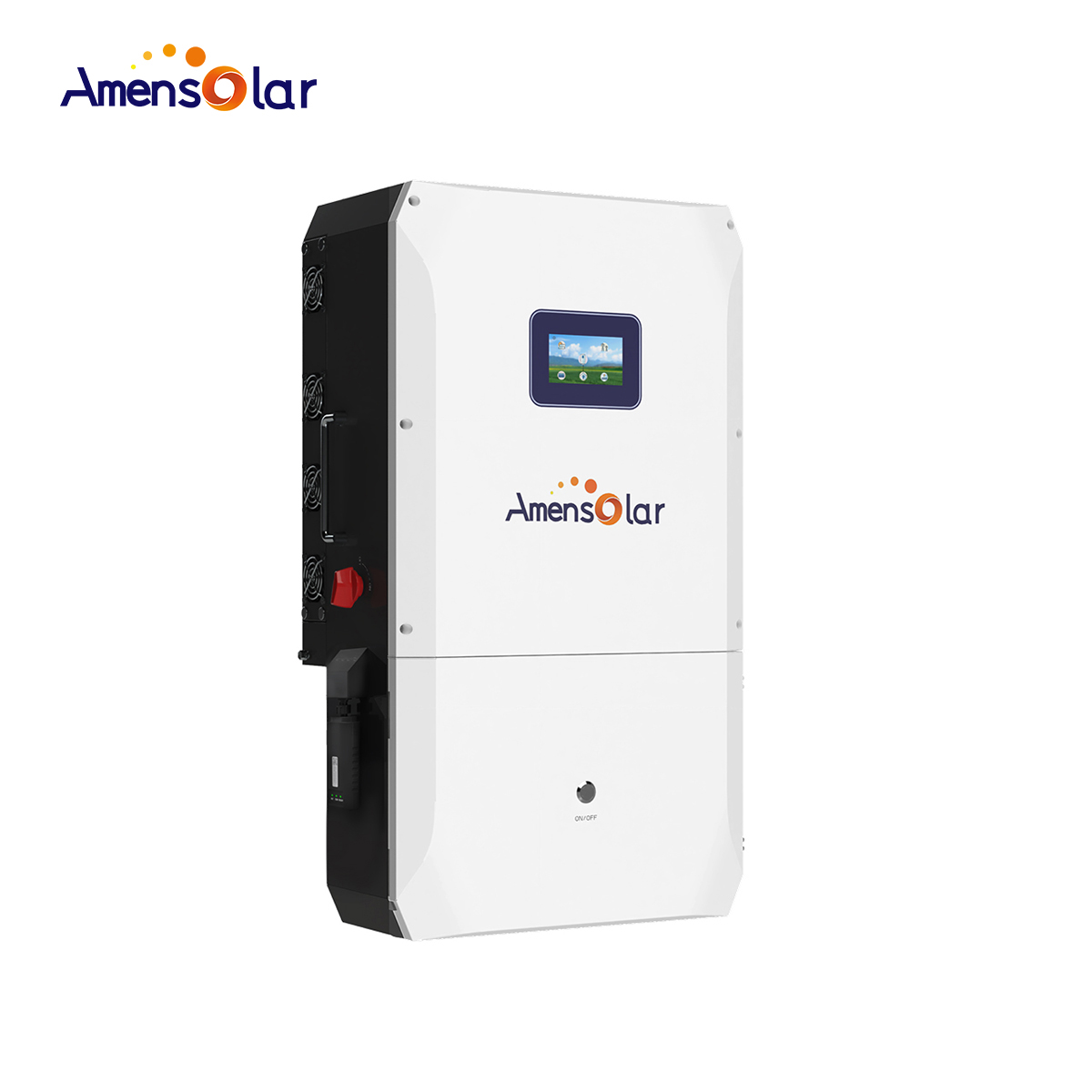

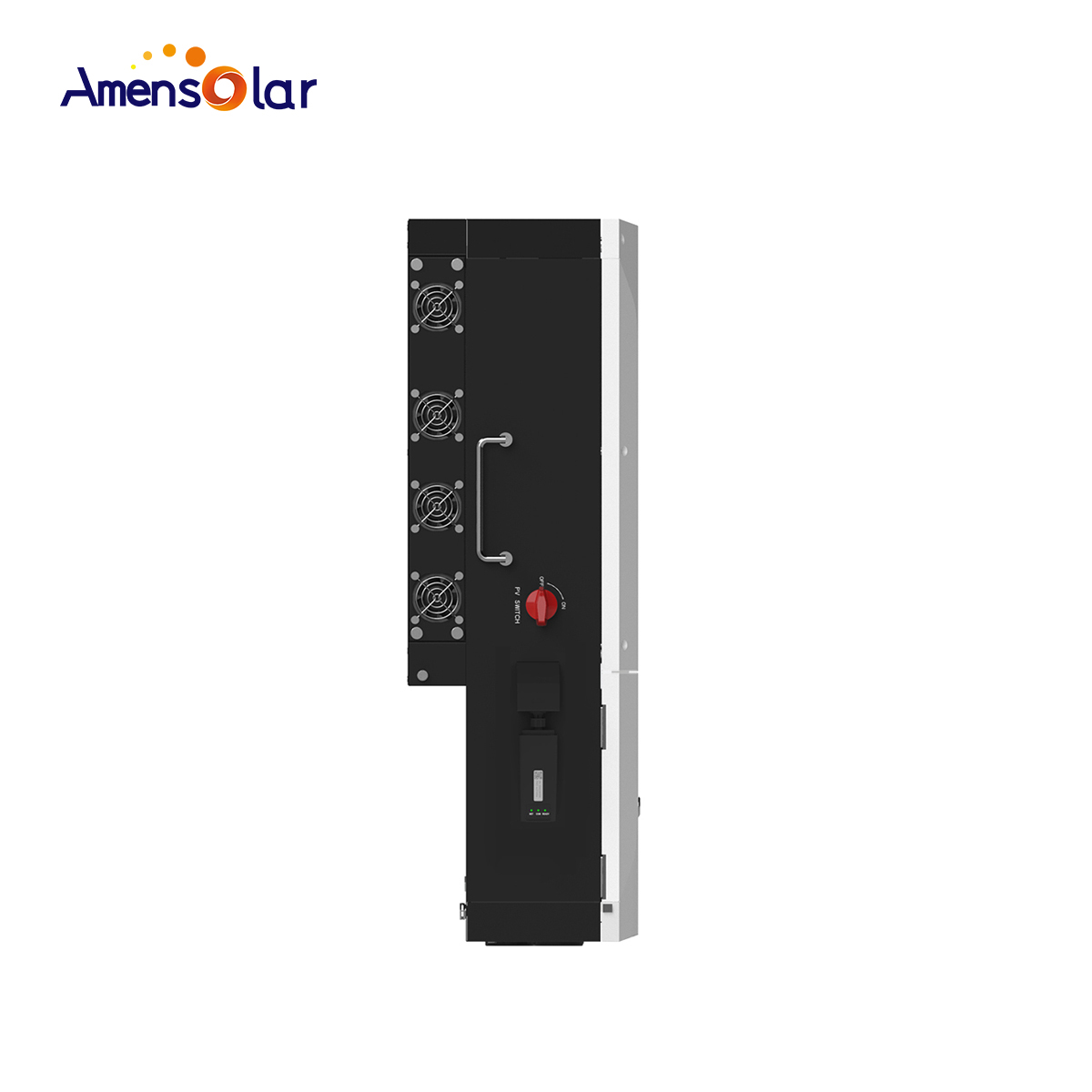

N3H-X8US 8KW Split Phase Hybrid Inverter

1. Certificate: UL1741SA, UL1699B, and CSA 22.2, ensuring safety .

2. Inverter power: 8KW.

3. Communication: Can,Rs485.

4. Support split phase 110/220V, 208V and 230V voltage.

5. Support OEM for customers with their own brand.

6. Support customer to do UL multiple listing.

7. Support parallel and generator function.

8. Support peak shifting function for customer to use extral electricity to earn money .

9. Max grid pass though current(A): 100.

Download:

Data Sheet

User Manual

Other Model:

N3H-X12US 12KW | Split Phase |...

N3H-X16US 16KW | Split Phase |...

N3H-X5US 5KW | Split Phase | ...

Product Introduction

Model	N3H-X8US
PV input
MAX.DC Input Power	12KW
No.of MPPT Trackers	4
MPPT Range	120 - 430V
MAX.DC Input Voltage	500V
MAX.Input Current	14A×4
Battery input
Nominal Voltage(Vdc)	48V
MAX.Charging/Discharging Current	190A/190A
Battery Voltage Range	40-60V
Battery Type	Lithium and Lead Acid Battery
Charging Strategy for Li-Ion Battery	Self-adaption to BMS
AC output(on-grid)
Nominal Output Power Output to Grid	8KVA
MAX. Apparent Power Output to Grid	8.8KVA
Output Voltage Range	110-120V/220-240V split phase, 208V(2/3 phase), 230V(1 phase)
Output Frequency	50/60Hz (45 to 54.9Hz / 55 to 65Hz)
Nominal AC Current Output to Grid	33.3A
Max.AC Current Output to Grid	36.7A
Output THDI	< 2%
AC output(back-up)
Nominal. Apparent Power Output	8KVA
MAX. Apparent Power Output	8.8KVA
Nominal Output Voltage L-N/L1-L2	120/240V
Nominal Output Frequency	60Hz
Output Power Factor	0.8leading …0.8lagging
Output THDU	< 2%
Efficiency
Europe Efficiency	>=97.8%
MAX. Battery to Load Efficiency	>=97.2%

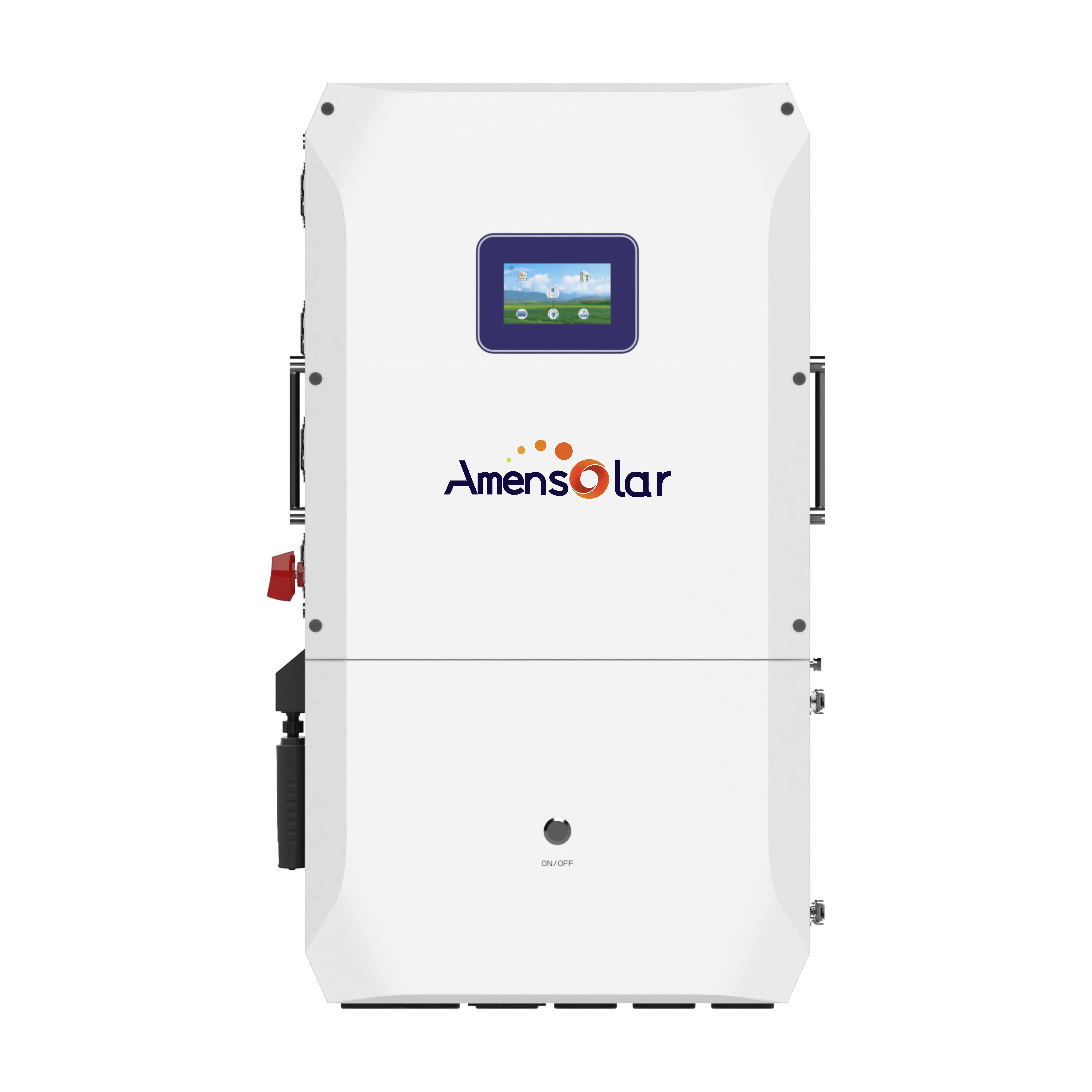

Protection
Grounding Detection	yes
Arc fault protection	yes
Island protection	yes
Battery Reverse Polarity	yes
Insulation Resistor Detection	yes
Residual Current Monitoring Unit	yes
Output Over Current Protection	yes
Back-up Output Short Protection	yes
Terminal Temperature Detection	yes
Output Over Voltage Protection	yes
Output Under Voltage Protection	yes
General data

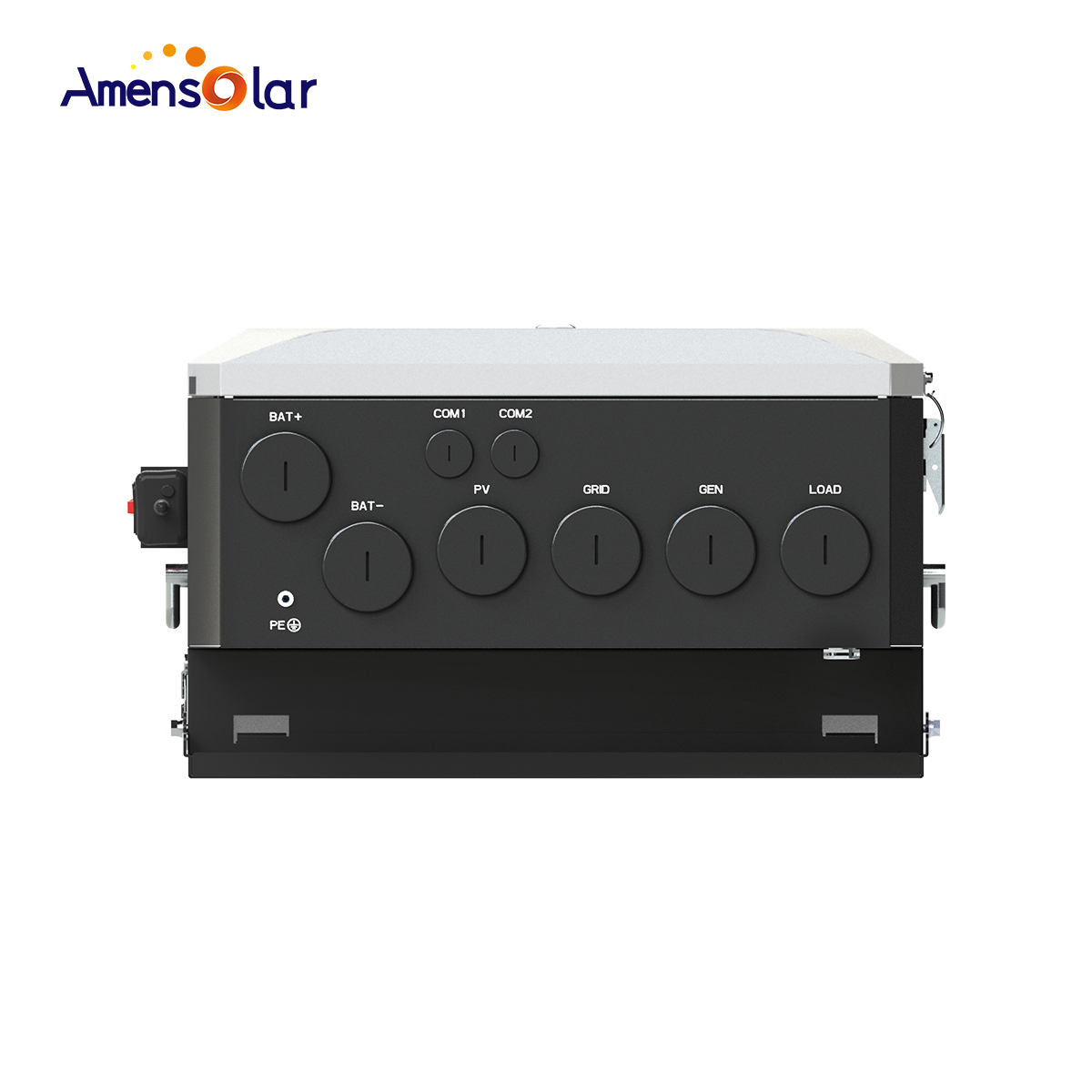

Output Conduit	25.4mm
PV Input Conduit	25.4mm
BAT Input Conduit	34.5mm
Operating Temperature Range	-25 ~ +60°C
Relative Humidity	0-95%
Operating Altitude	0~4000m
Ingress Protection	IP65/NEMA 3R
Weight	48kg
Size (WidthHeightDepth)	450mm x 820mm x 261mm
Cooling	Air Cooling
Noise Emission	<38dB
Display	LCD
Communication With BMS/Meter/EMS	CAN RS485
Supported Communication Interface	RS485, WLAN, 4G (optional)
Self-consumption at Night	< 25W
Safety	UL1741SA all options , UL1699B, CSA 22.2
EMC	FCC Part 15 ClassB
Grid Connection Standards	IEEE 1547, IEEE 2030.5, Hawaii Rule 14H, Rule 21 Phase I,II,III

High Quality Solar Inverter

4MPPTS

Max Input Current of 14A for Each MPPT

Multiple Working Modes

Self use/peak shift/battery priority

Coupling function

Solarman APP

Enables Remote Intelligent Monitoring

Can be connected in parallel to increase System power

PV DC to AC

Converts DC power generated by solar panels to AC power for home or commercial use

Battery storage

Inverters can be integrated with energy storage systems (batteries) to store excess power for use at night or on cloudy days

Selling Electricity

The inverter supports connection to the smart grid, allowing bi-directional power flow, allowing customers to not only use their own power but also sell excess power to the grid.
