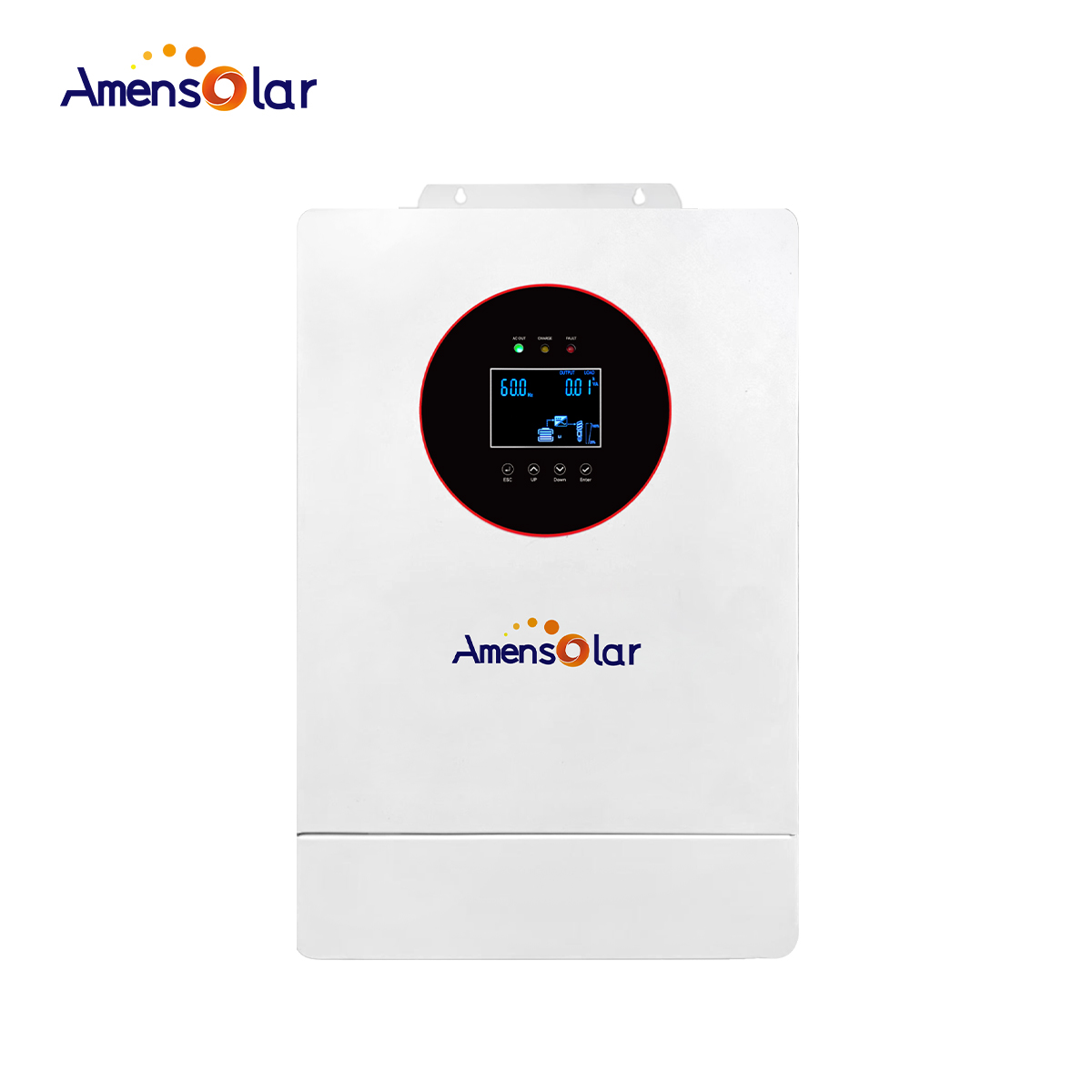

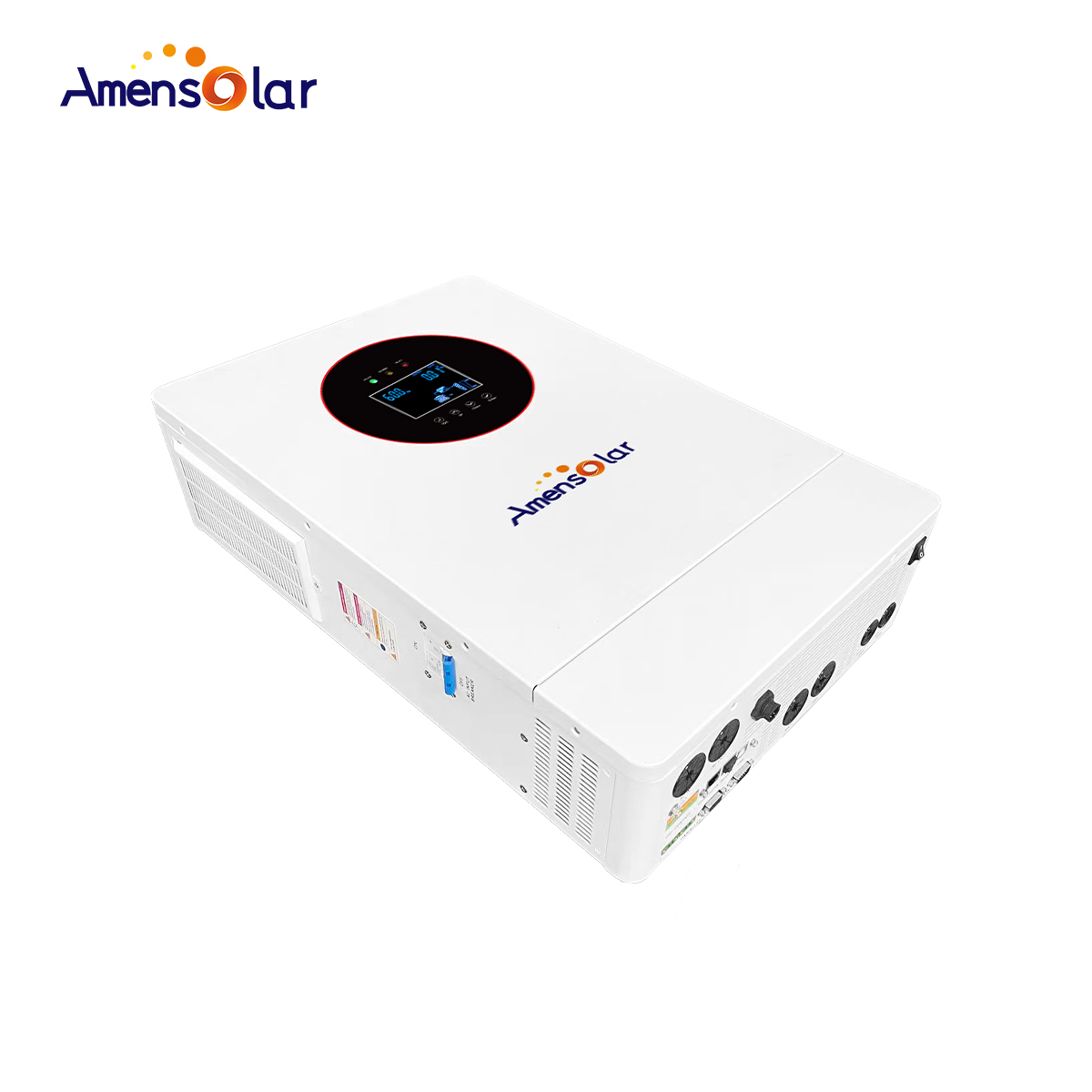

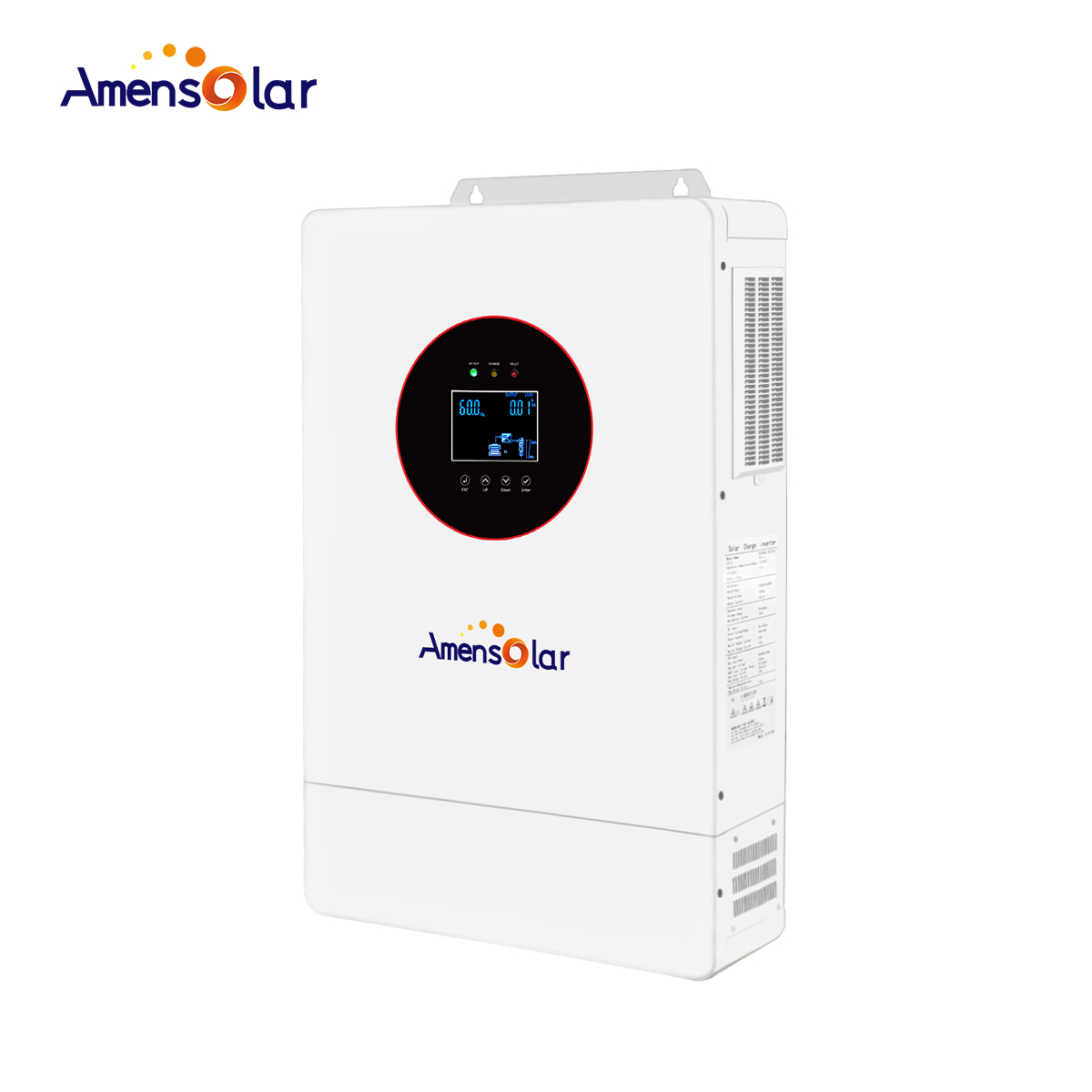

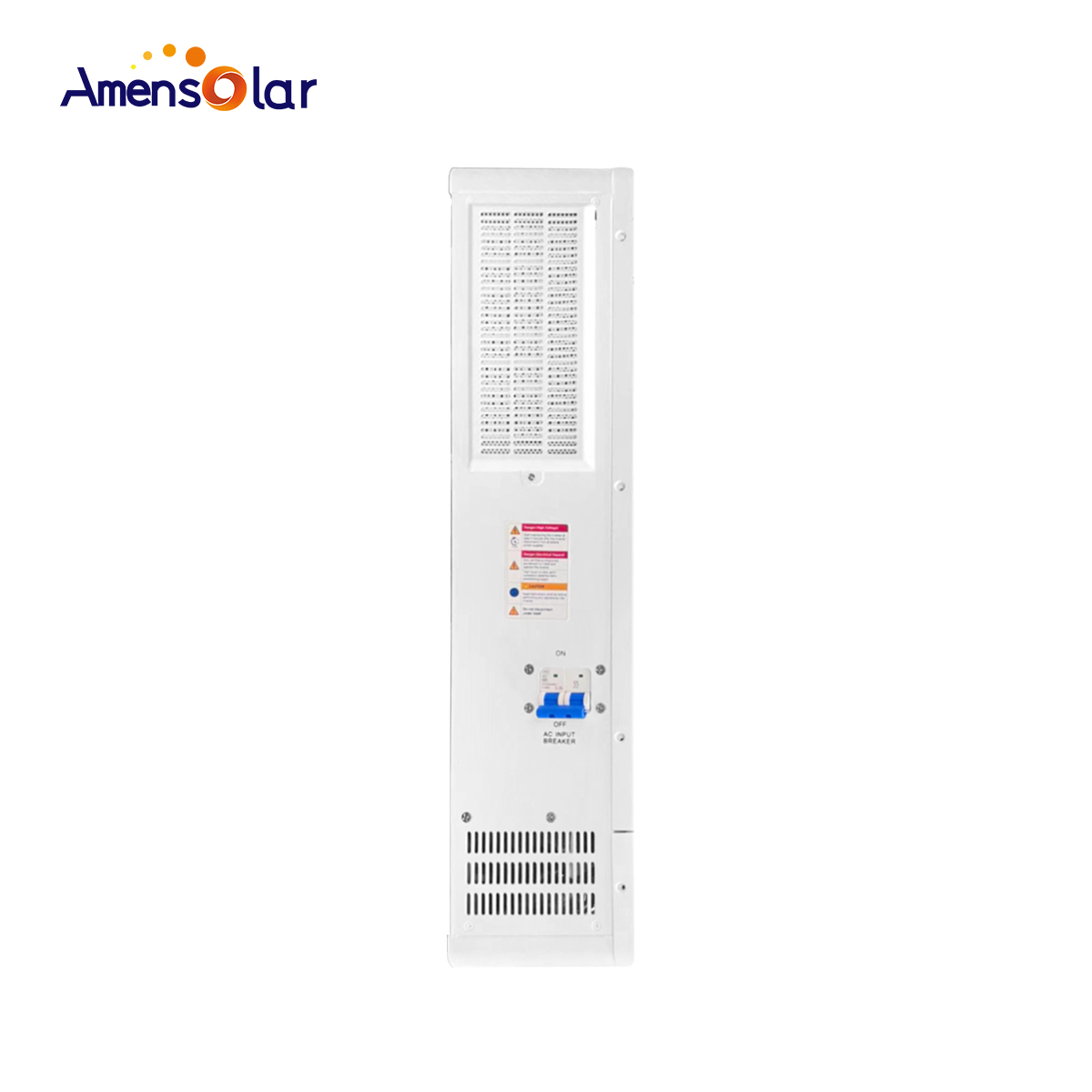

N1F-A6.5US 6.5KW Split Phase Off-grid Inverter

1. Inverter power: 6.5KW.

2. Dual-channel MPPT.

3. Max. efficiency >95%.

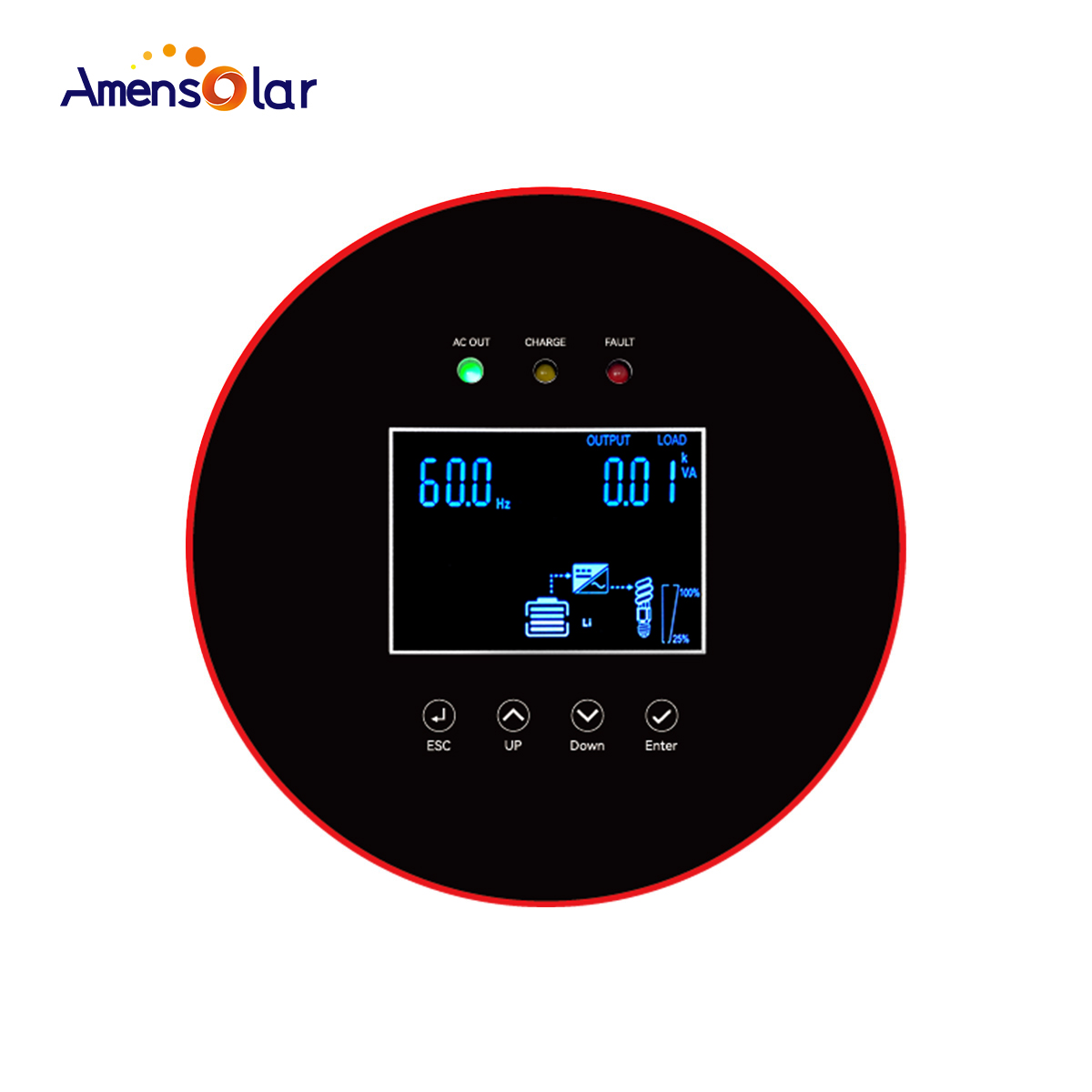

4. OLED light touch screen.

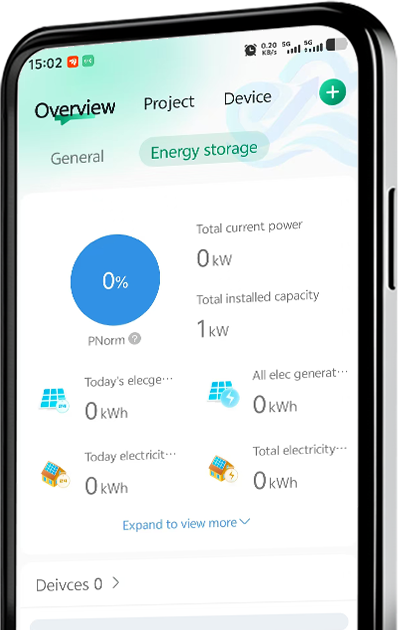

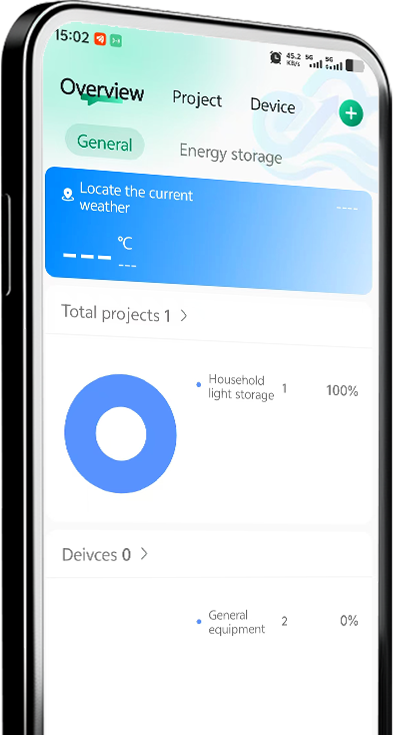

5. Flexible monitor mode.

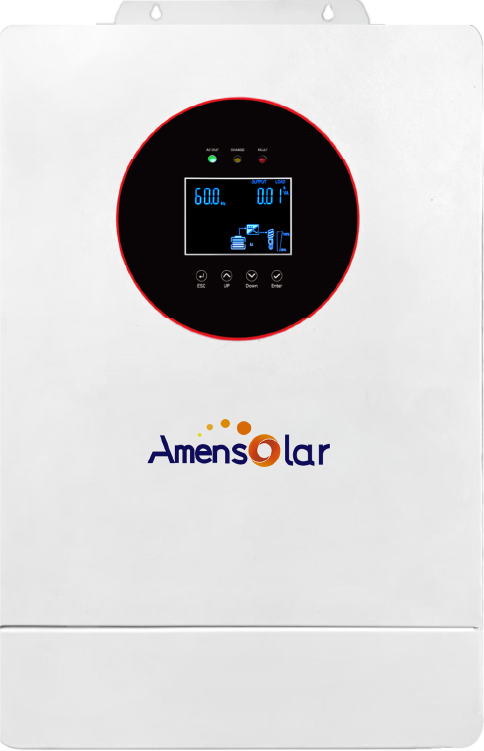

6. Extreme security.

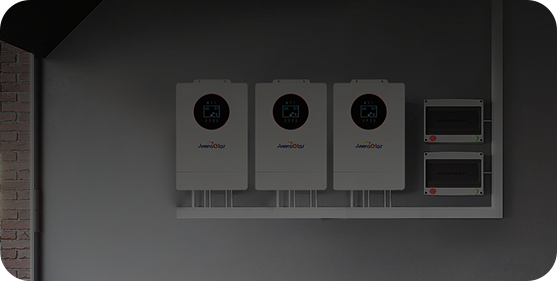

7. Parallel operation with up to 6 units.

Download:

Data Sheet

User Manual

Other Model:

N1F-A3US 3KW | Split Phase | ...

N1F-A6.2P 6.2KW | Single Phase...

N1F-A6.2E 6.2KW | Single Phase...

Product Introduction

Type	N1F-A6.5US
Parallel mode (function reserved)
Allow quantity	1-6
Mains mode
Nominal input voltage	120Vac±5%
Input voltage range	(90Vac~140Vac)±2%
Frequency	50Hz/60Hz(Auto detect)
Frequency range	47±0.3Hz~55±0.3Hz(50Hz);57±0.3Hz~65±0.3Hz(60Hz);
Max . efficiency	>95%
Conversion Ⅵme (bypass and inverter)	10ms (Typical value)
Max. bypass overload current	63A
Inverter mode
Output voltage waveform	Pure sine wave
Nominal output power(VA/(W)	6500VA/6500W
Power factor	1
Nominal output voltage (Vac)	120Vac
Output frequency range(Hz)	50Hz±0.3Hz/60Hz±0.3Hz
Max . efficiency	>91%
Overload protection	(102%<load<125%)±10%:report error, turn off the output after 5 minutes; (125%<load<150%)±10%:report error, turn off the output after 10 seconds; load>150%±10%:report error, turn off the output after 5 seconds;
Peak power	12000VA
Load motor capability	5HP
Nominal battery input voltage	48V(Min start voltage 44V)
Battery voltage range	40.0Vdc-60Vde±0.6Vdc (Undervoltage alarm/shutdown voltage/overvoltage alarm/overvoltage recovery-LCD screen can be set)
Save power mode	Loads 25W
Mains charge
Battery type	Lead-acid or lithium batteries
Max . charge current (conﬁgurable)	120A
Charge voltage range	40-60Vde
Solar charge
Max.PV open circuit voltage	300Vde
PV operating voltage range	80-300Vde
MPPT voltage range	90-260Vde
Battery voltage range	40-60Vdc
Max.PV input power/current	4500W×2/22A×2
Charge current range (conﬁgurable)	0-150A
Max. hybrid charge current (PV+AC)
Max hybrid charge current (conﬁgurable)	0-150A
Certiﬁcation
Safety certiﬁcation	CE(JEC62109-1,2)
EMC certiﬁcation level	EN6100,C2
Operate temperature range	-15℃~ 55℃
Storage temperature range	-25℃~60℃
Humidity range	5%to 95%(Three ant-paint protection)
Noise	≤60dB
Cooling	Forced air cooling, adjustable wind speed

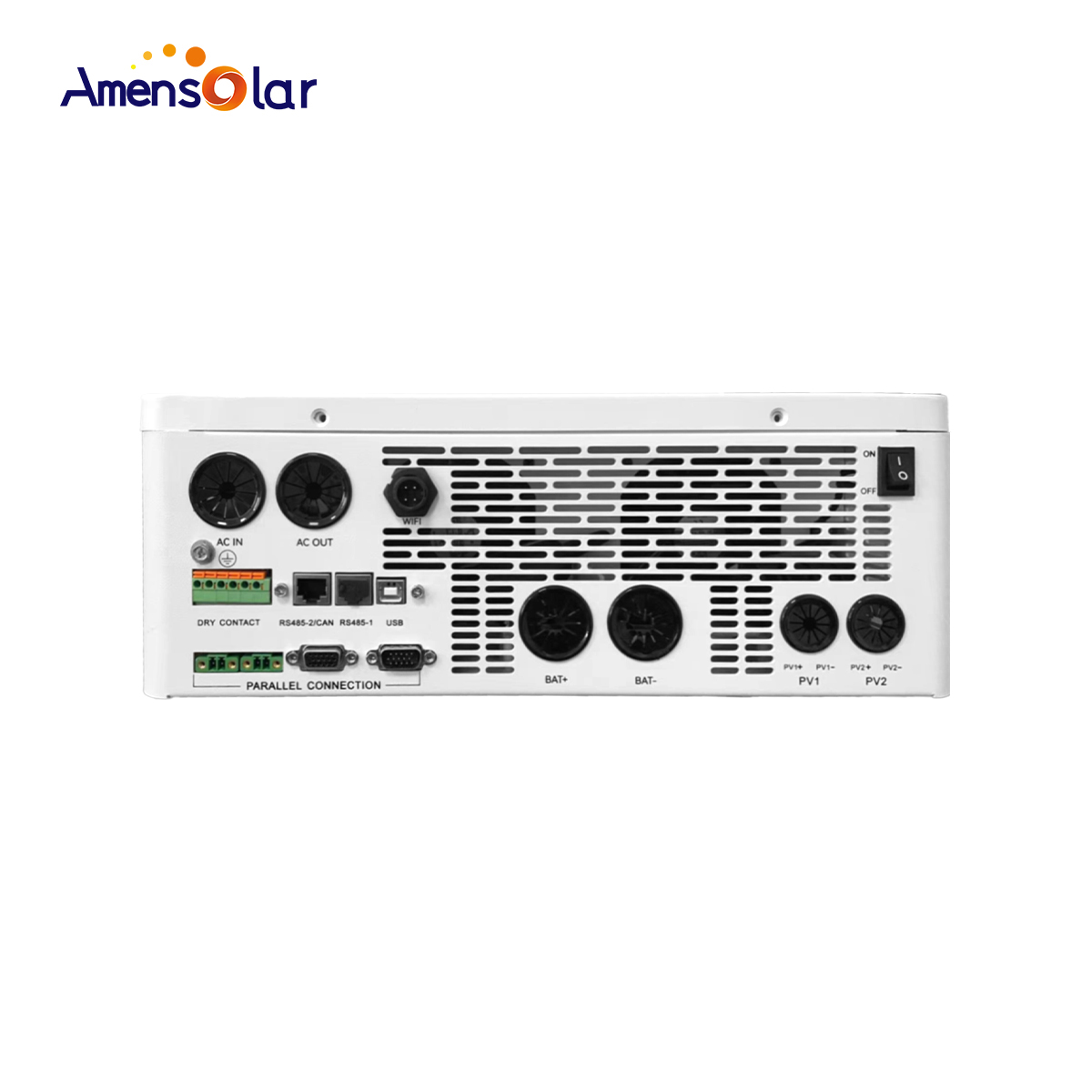

communicate	USB/S485(WiFi/GPS/Dry node control)
Dimensions (LWD)	550mm365mm130mm
Weight (kg)	20
