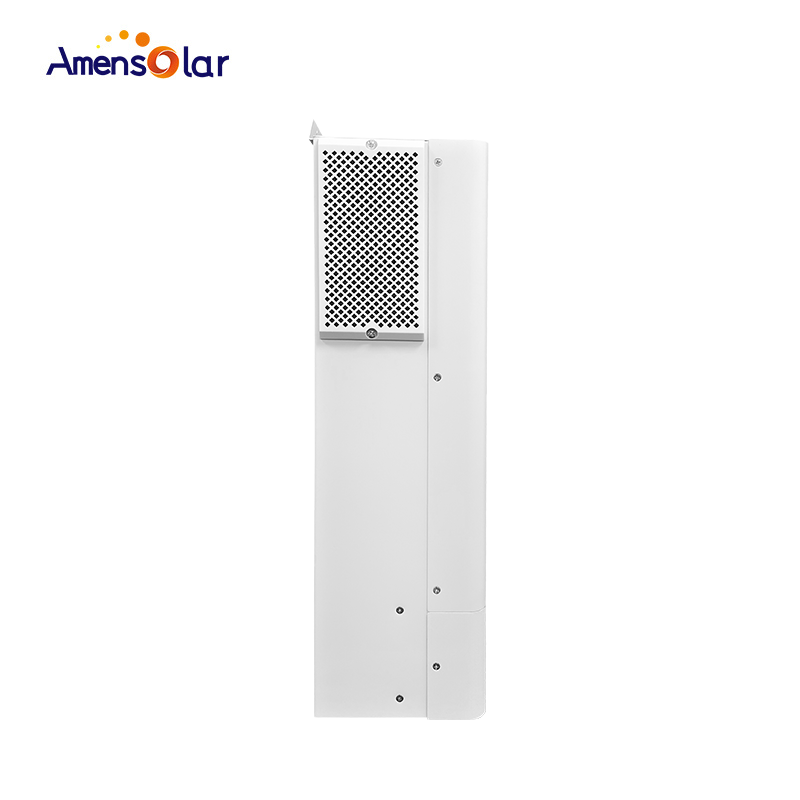

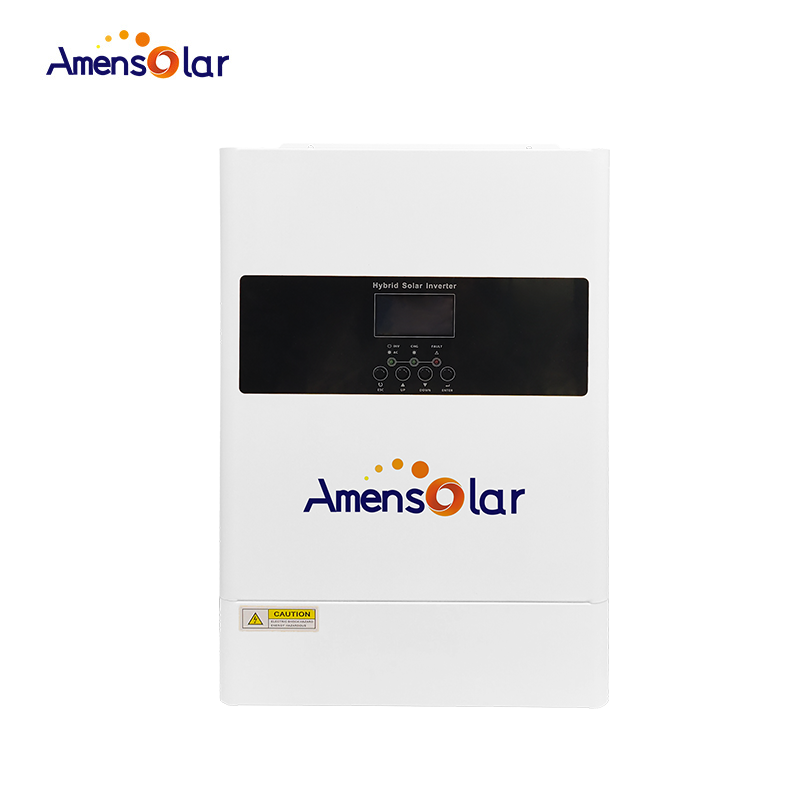

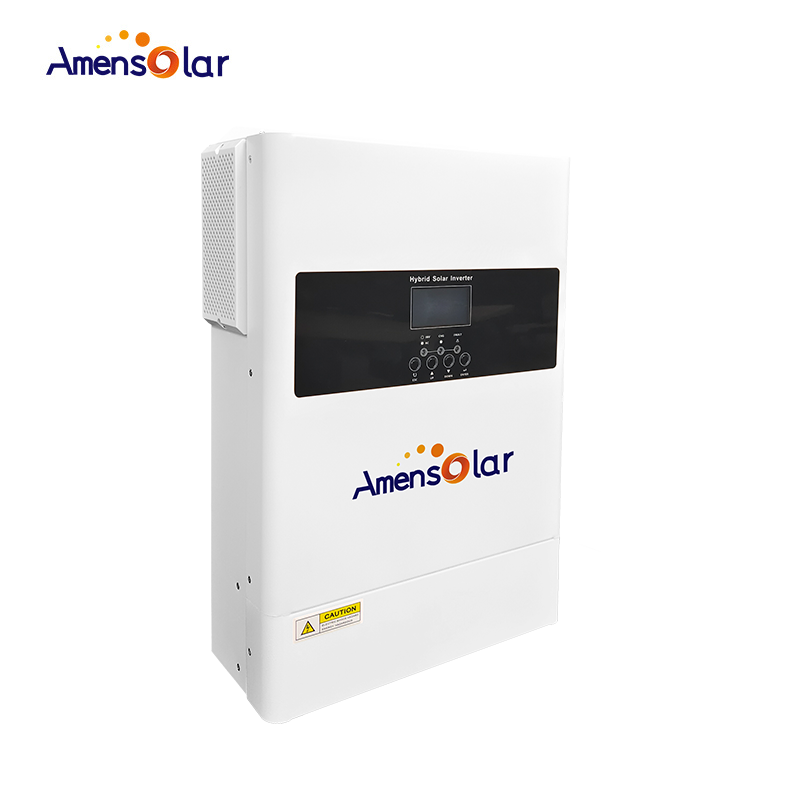

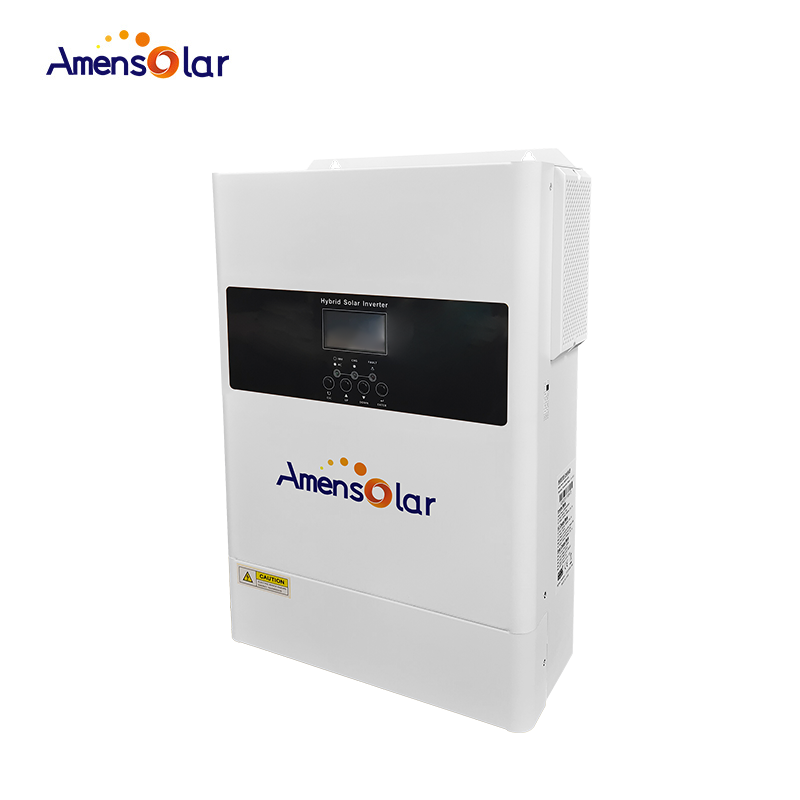

N1F-A6.2P 6.2KW Single Phase Off-grid Inverter

1. Inverter power: 6.2KW.

2. Communication: Can,Rs485.

3. Nominal Voltage: 230VAC.

4. Pure sine wave.

5. Power factor 1.0.

6. Capable of working without the battery.

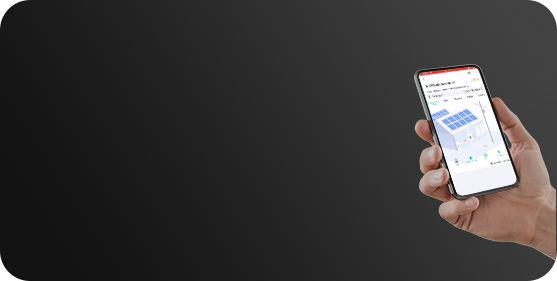

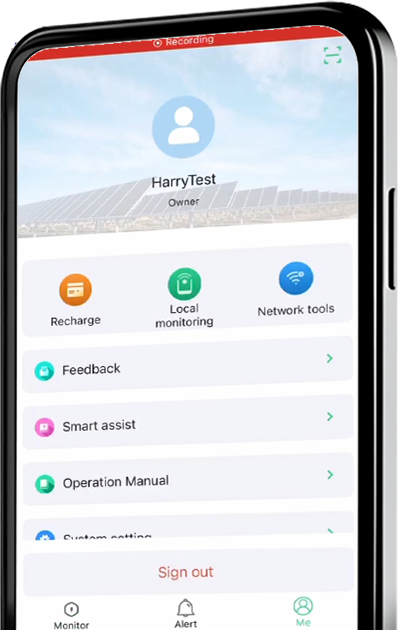

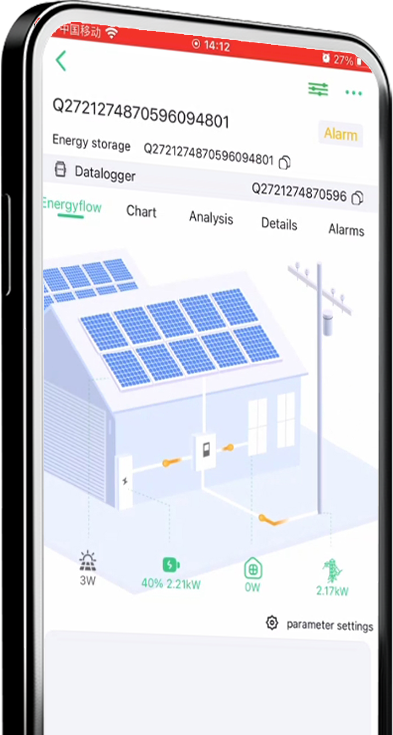

7. Enables remote intelligent monitoring by SmartESS APP.

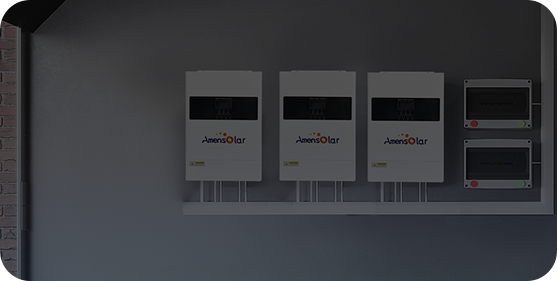

8. Parallel operation up to 12 units in 1phase or 3phase.

9. EQ function to optimize battery performance and extend the lifecycle.

Data Sheet

User Manual

N1F-A3US 3KW | Split Phase | ...

N1F-A6.2E 6.2KW | Single Phase...

N1F-A3.5/24E 3.5KW | Single Phase...

Model	N1F-A6.2P
Capacity	6.2KVA/6.2KW
input
Nominal Voltage	230VAC
Acceptable Voltage Range	170-280VAC(For personal Computer);90-280vac(For Home Appliances)
Frequency	50/60 Hz(Auto sensing)
OUTPUT
Nominal Voltage	220/230VAC±5%
Surge Power	12400VA
Frequency	50/60Hz
Waveform	Pure Sine wave
Transfer Time	10ms(For personal Computer);20ms(For Home Appliances)
Peak Efficiency	94%
Overload Protection	5s@>= 150%load;10s@110%~ 150%load
Crest Factor	3:1
Admissible Power Factor	0.6~ 1(inductive or capacitive)
BATTERY
Battery Voltage	48VDC
Floating Charge Voltage	54VDC
OverCharge Protection	63VDC
Charging Method	CC/CV
Solar Charger &AC Charger
Solar Charger Type	MPPT
Max.PV Array Power	6500W
Max.PV Array Open Circuit Voltage	500VDC
PV Array MPPT Voltage Range	60VDC~450VDC
Max.Solar Input Current	27A
Max.Solar Charge Current	120A
Max.AC Charge Current	80A
Max.Charge Current	120A
PHYSICAL

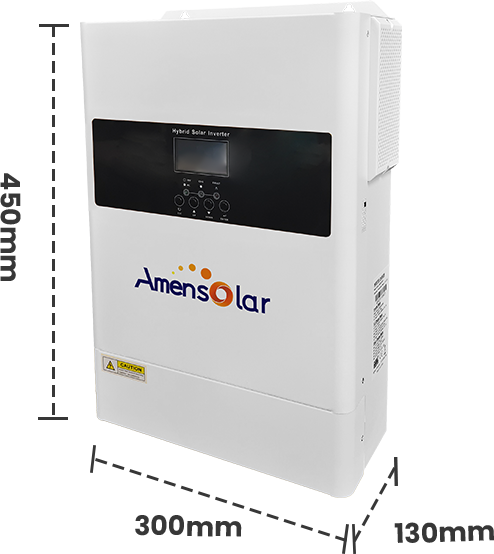

Dimensions , DxWxH	450x300x130mm

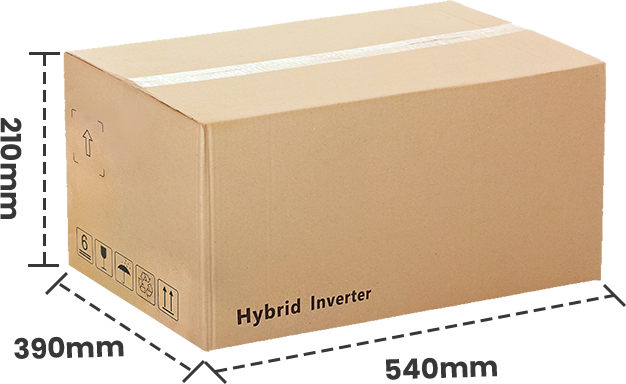

Package Dimensions , DxWxH	540x390x210mm
Net Weight	9.6KG

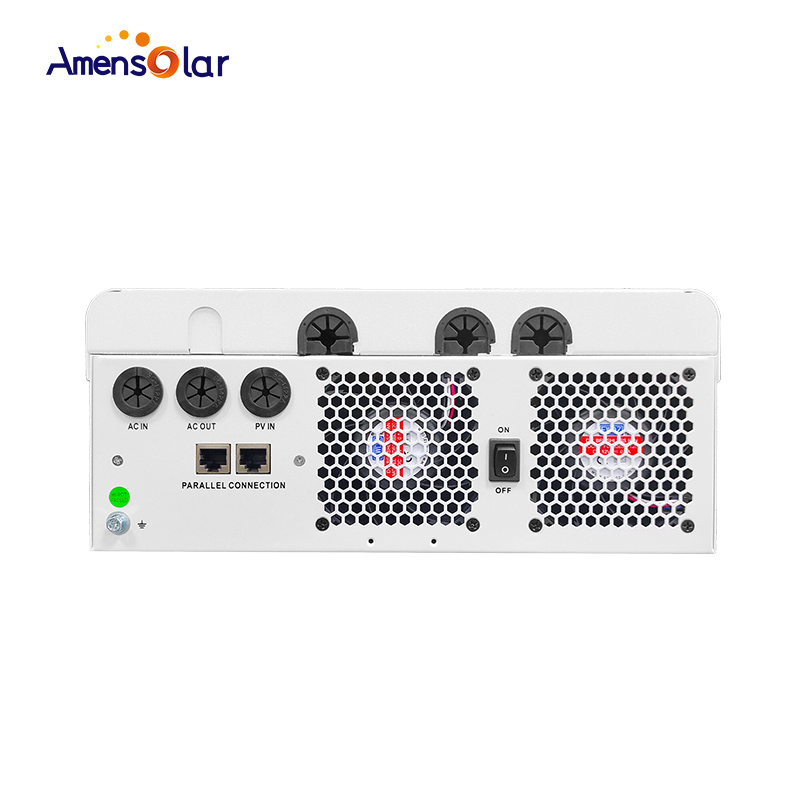

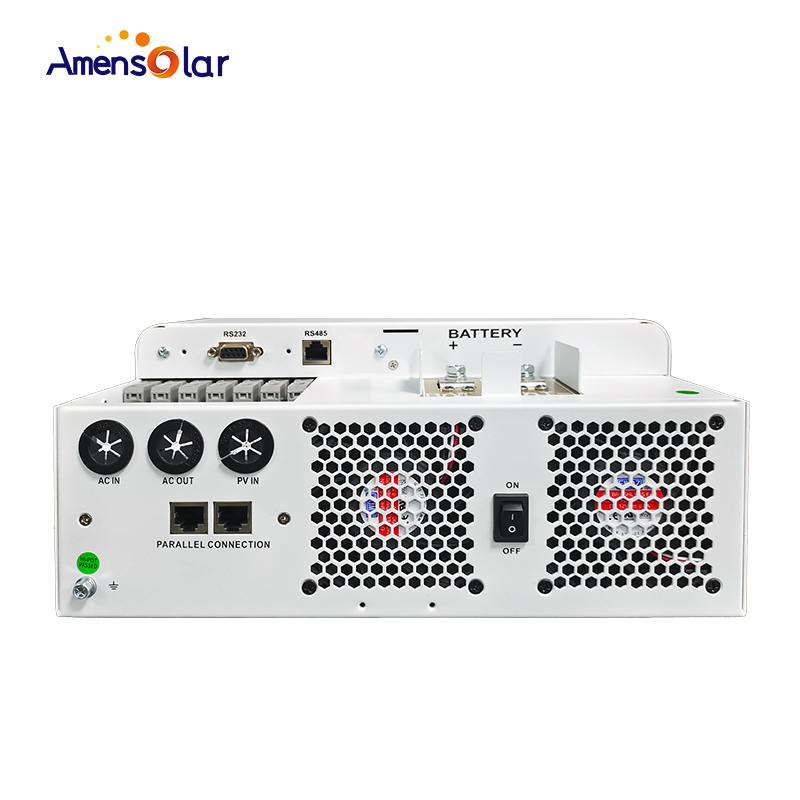

Communication Interface	RS232/RS485/Dry-contact
ENVIRONMENT
Operating Temperature Range	- 10°C ~ 50°C
Storage Temperature	- 15°C ~ 50°C
Humidity	5%to 95%Relative Humidity(Non-condensing)
